SKU: 6313-2RS1-SKF

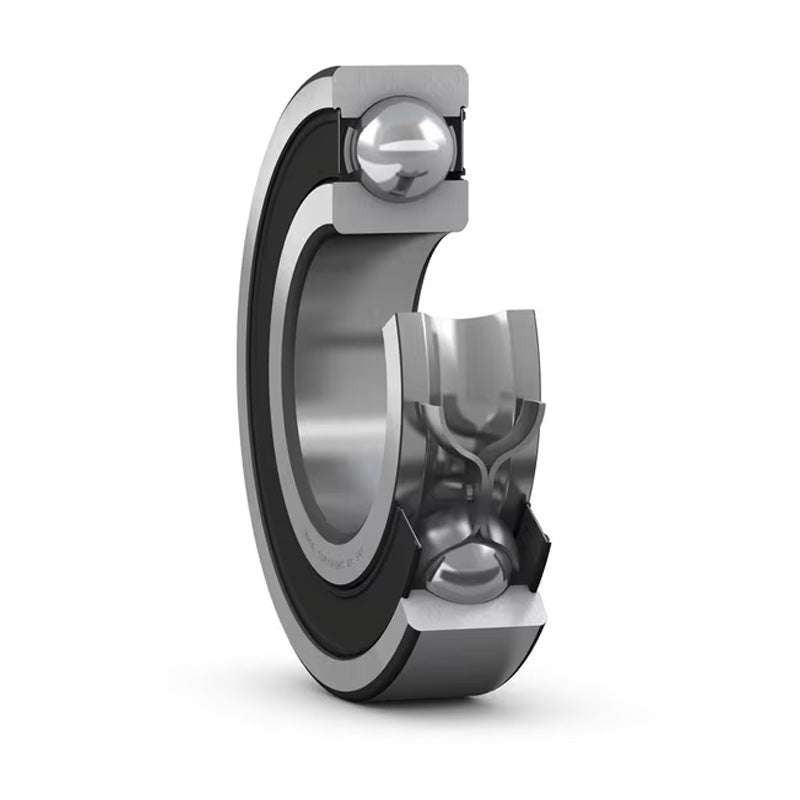

SKF 63132RS1 Rubber Sealed Deep Groove Ball Bearing 65x140x33mm
SKF 63132RS1 Rubber Sealed Deep Groove Ball Bearing 65x140x33mm
Regular price
$117.28
ex VAT
Regular price
Sale price
$117.28
ex VAT
Equivalent to: 6313NSE 6313DU 6313RS 6313RSH 6313P 6313RSR 6313LU 63132NSE 6313DDU 63132RS 63132RSH 6313PP 63132RSR 6313LLU
In stock
Price Break
4+
$78.56
10+
$74.15
20+
$73.27
30+
$72.38
50+
$71.50
75+
$70.62
100+
$66.20
200+
$65.32
250+
$64.44
500+
$63.56
1000+
$61.79
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 65mm
- Outside Diameter:
- 140mm
- Width:
- 33mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
Technical
| d | 65mm |
|---|---|
| D | 140mm |
| B | 33mm |
| Dynamic load C | 97.5 kN |
| Static load Co | 60 kN |
| Fatigue load limit Pu | 2.5 kN |
| Reference speed | 10000 rpm |
| Limiting speed | 3200 rpm |
| Weight | 2.1 kg |
| d1 | 88.4mm |
| D2 | 121mm |
| r1r2 min | 2.1mm |
| da min | 77mm |
| Da max | 128mm |
| ra max | 2mm |
| Calculation factor kr | 0.03 |
| Calculation factor f0 | 13 |
