SKU: 6313NR/C3-SKF

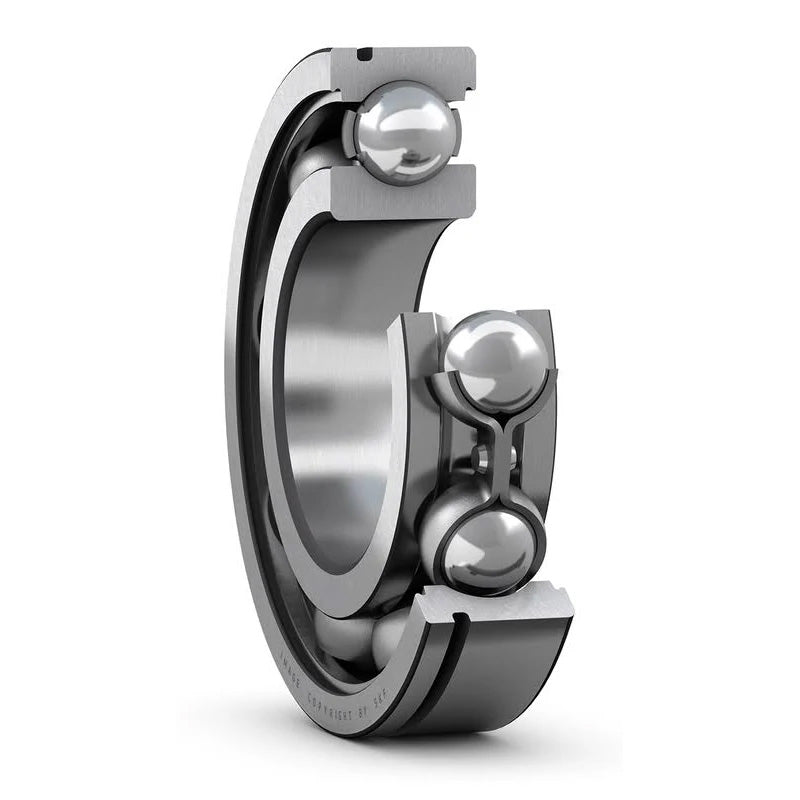

SKF 6313NRC3 Open Type Snap Ring Deep Groove Bearing 65x140x33mm
SKF 6313NRC3 Open Type Snap Ring Deep Groove Bearing 65x140x33mm
Regular price
$259.30
ex VAT
Regular price
Sale price
$259.30
ex VAT
In stock
Price Break
4+
$173.69
10+
$163.93
20+
$161.98
30+
$160.03
50+
$158.07
75+
$156.12
100+
$146.37
200+
$144.41
250+
$142.46
500+
$140.51
1000+
$136.61
Quantity
Couldn't load pickup availability
Description
Description
|
Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured without seals to allow the circulation of the oil or grease lubricant. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 65mm
- Outside Diameter:
- 140mm
- Width:
- 33mm
- Seals / Shields:
- None
- Clearance:
- C3
- Snap Ring:
- Snap Ring
Technical
Technical
| d | 65mm |
|---|---|
| D | 140mm |
| B | 33mm |
| Dynamic load C | 97.5 kN |
| Static load Co | 60 kN |
| Fatigue load limit Pu | 2.5 kN |
| Reference speed | 10000 rpm |
| Limiting speed | 6700 rpm |
| Weight | 2.1kg |
| Snap ring | SP 140 |
| d1 | 88.3mm |
| D2 | 122mm |
| D3 | 135.23mm |
| D4 | 149.7mm |
| b | 3.1mm |
| f | 2.82mm |
| C | 4.9mm |
| r1r2 min | 2.1mm |
| ro max | 0.6mm |
| da min | 77mm |
| Da max | 128mm |
| Db min | 151mm |
| ba min | 3.5mm |
| Ca max | 7.72mm |
| ra max | 2mm |
| Calc Factor kr | 0.03 |
| fo | 13 |
