SKU: 6314-ZZE-NACHI

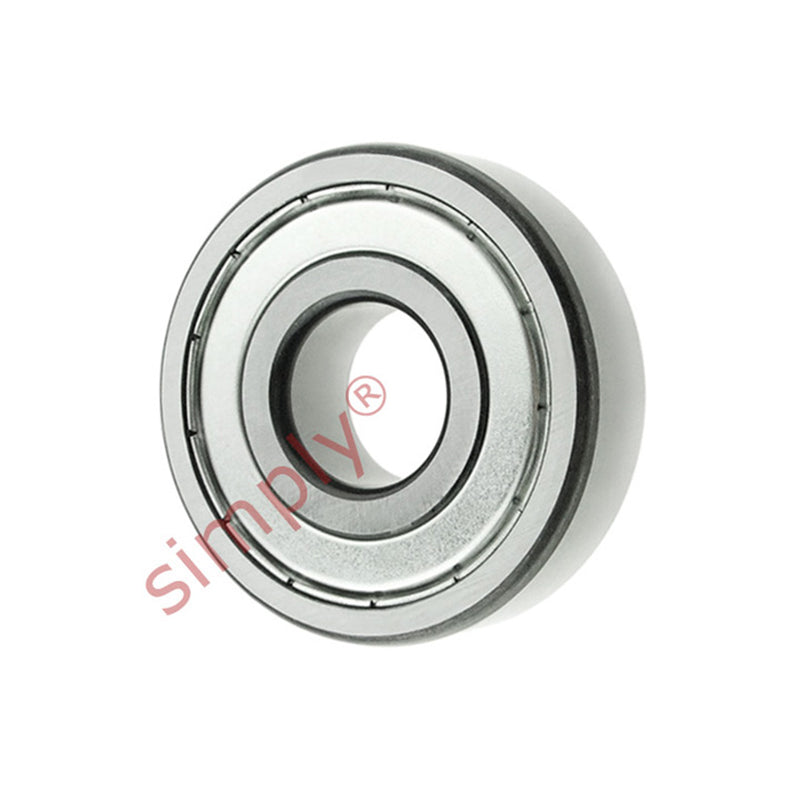

NACHI 6314ZZE Metal Shielded Deep Groove Ball Bearing 70x150x35mm
NACHI 6314ZZE Metal Shielded Deep Groove Ball Bearing 70x150x35mm
Regular price
$104.37
ex VAT
Regular price
Sale price
$104.37
ex VAT
Equivalent to: 6314ZZ 63142Z 6314.2Z 6314KDD 6314DD 63142ZR 6314FF
In stock
Price Break
5+
$69.91
9+
$65.98
19+
$65.19
29+
$64.41
49+
$63.62
74+
$62.84
99+
$58.91
199+
$58.12
249+
$57.34
499+
$56.55
999+
$54.98
Quantity
Couldn't load pickup availability
Description
Description
|
NACHI Metal Shielded Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two steel shields to provide a labyrinth clearance. Benefits: High-running accuracy and high-speed operation. |
- Brand / Quality:
- Nachi - High Quality
- Inside Diameter:
- 70mm
- Outside Diameter:
- 150mm
- Width:
- 35mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
Technical
Technical
| Inside Diameter d | 70mm |
|---|---|
| Outside Diameter D | 150mm |
| Width B | 35mm |
| Min radius r | 2.1mm |
| Dynamic load | 104000 kN |
| Static load | 68000 kN |
| Max speed | 4600 rpm |
| da min | 82mm |
| Da max | 138mm |
| ra max | 2mm |
| Weight | 2.52 kg |
