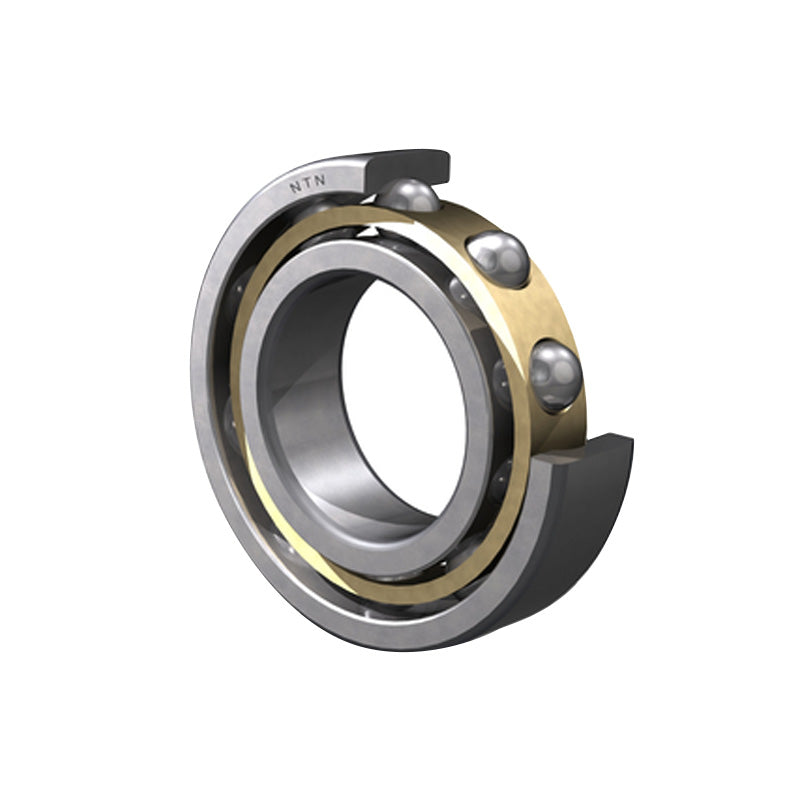

• NTN 6314L1C3 Machined Brass Cage Open Type Deep Groove Ball Bearing 70x150x35mm
1 1

SKU: 6314L1C3-NTN

NTN 6314L1C3 Machined Brass Cage Open Type Deep Groove Ball Bearing 70x150x35mm

NTN 6314L1C3 Machined Brass Cage Open Type Deep Groove Ball Bearing 70x150x35mm
$211.06 ex VAT
$211.06 ex VAT
Sale Sold out

In stock

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
NTN - High Quality
Inside Diameter:
70mm
Outside Diameter:
150mm
Width:
35mm
Seals / Shields:
None
Clearance:
C3
Technical
--- Bearing dimensions
d 70mm
D 150mm
B 35mm
r<sub>s</sub> min 2.1mm
--- Loads angles and speeds
C<sub>r</sub> 115 Kn
C<sub>or</sub> 68 kN
C<sub>u</sub> 5.1 kN
f<sub>0</sub> 13.2 kN
Grease 4600 rpm
Oil 5400 rpm
--- Fitting Dimensions
d<sub>a</sub> Min. 81mm
D<sub>a</sub> Max. 139mm
r<sub>as</sub> Max. 2mm
Weight 2.52 kg
