SKU: 6314NR-SKF

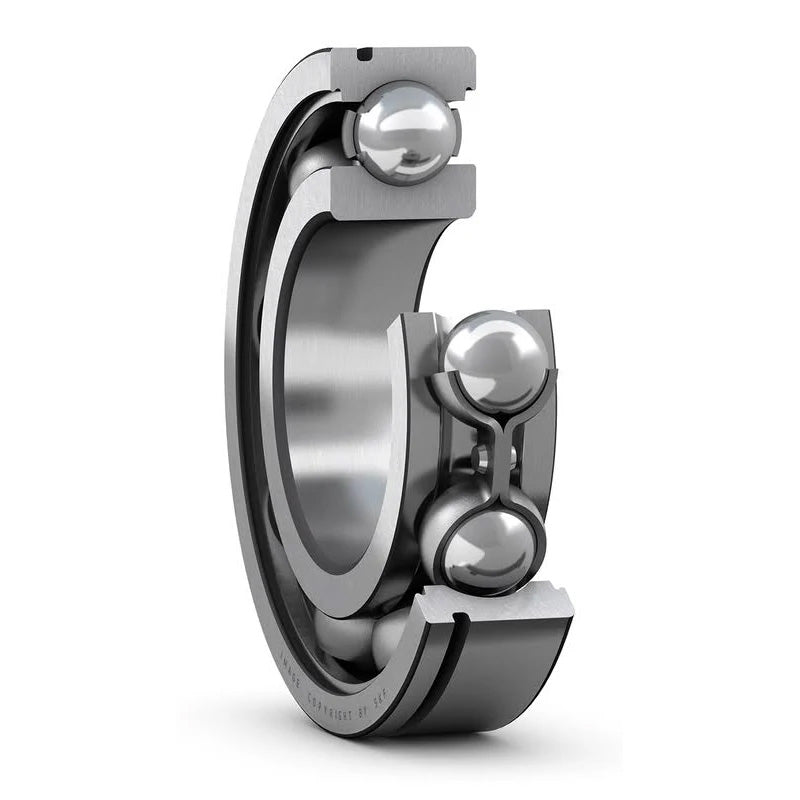

SKF 6314NR Open Type Snap Ring Deep Groove Bearing 70x150x35mm
SKF 6314NR Open Type Snap Ring Deep Groove Bearing 70x150x35mm
Regular price
$254.39
ex VAT
Regular price
Sale price
$254.39
ex VAT
In stock
Price Break
4+
$170.40
10+
$160.83
20+
$158.91
30+
$157.00
50+
$155.08
75+
$153.17
100+
$143.59
200+
$141.68
250+
$139.77
500+
$137.85
1000+
$134.02
Quantity
Couldn't load pickup availability
Description
Description
|
Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured without seals to allow the circulation of the oil or grease lubricant. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 70mm
- Outside Diameter:
- 150mm
- Width:
- 35mm
- Seals / Shields:
- None
- Clearance:
- * Standard
- Snap Ring:
- Snap Ring
Technical
Technical
| d | 70mm |
|---|---|
| D | 150mm |
| B | 35mm |
| Dynamic load C | 111 kN |
| Static load Co | 68 kN |
| Fatigue load limit Pu | 2.75 kN |
| Reference speed | 9500 rpm |
| Limiting speed | 6300 rpm |
| Weight | 2.55kg |
| Snap ring | SP 150 |
| d1 | 94.9mm |
| D2 | 130mm |
| D3 | 145.25mm |
| D4 | 159.7mm |
| b | 3.1mm |
| f | 2.82mm |
| C | 4.9mm |
| r1r2 min | 2.1mm |
| ro max | 0.6mm |
| da min | 82mm |
| Da max | 138mm |
| Db min | 162mm |
| ba min | 3.5mm |
| Ca max | 7.72mm |
| ra max | 2mm |
| Calc Factor kr | 0.03 |
| fo | 13 |
