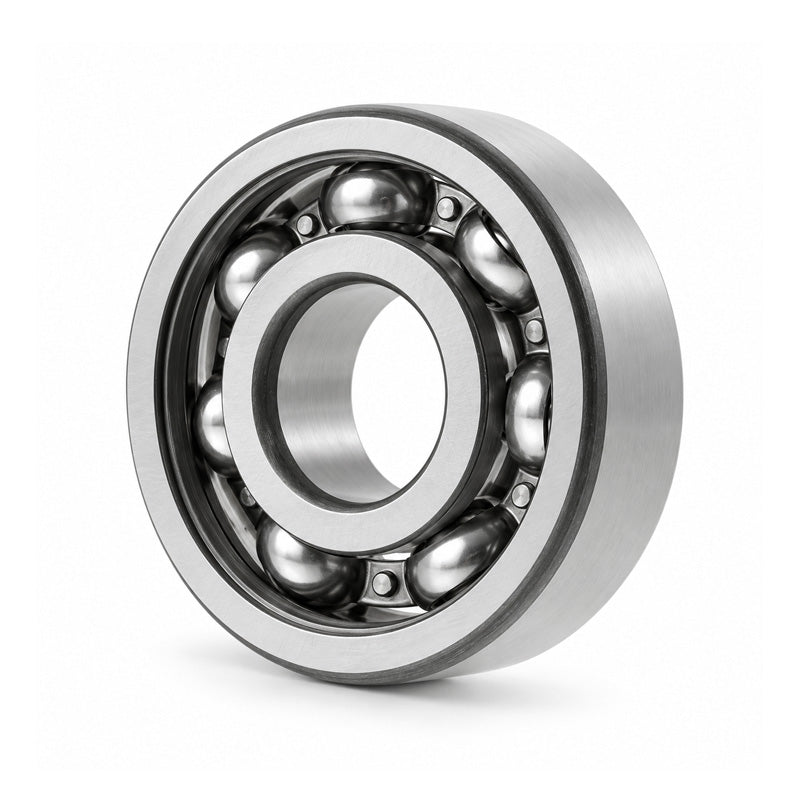

• SKF 6315HC5C3 Hybrid Ball Bearing Open Type 75x160x37mm
1 1

SKU: 6315/HC5C3-SKF

SKF 6315HC5C3 Hybrid Ball Bearing Open Type 75x160x37mm

SKF 6315HC5C3 Hybrid Ball Bearing Open Type 75x160x37mm
$1,928.09 ex VAT
$1,928.09 ex VAT
Sale Sold out

In stock

Price Break
10+ $1,291.48
19+ $1,218.93
29+ $1,204.42
39+ $1,189.91
49+ $1,175.40
74+ $1,160.88
99+ $1,088.33
199+ $1,073.82
249+ $1,059.31
499+ $1,044.80
999+ $1,015.77

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF Life Hybrid Deep Groove Ball Bearings: Special application bearings, the outer and inner races are made form bearing steel and the rolling elements are made from Silicon Nitride (SiN4) In addition to being excellent electrical insulators hybrid bearings have a higher speed capacity and longer service life that normal steel only bearings.
Benefits: Electrically insulated, sealed for life, high life expectancy.
Brand / Quality:
SKF - High Quality
Inside Diameter:
75mm
Outside Diameter:
160mm
Width:
37mm
Seals / Shields:
None
Clearance:
C5
Technical
d 75mm
D 160mm
B 37mm
Dynamic load Cr 119 kN
Static load Cor 76.5 kN
Fatigue load limit 3 kN
Reference speed 12000 rpm
Limiting speed 6700 rpm
Weight 2.6 kg
d1 101mm
D1 138mm
r1r2 min 2.1mm
da min 87mm
Da max 148mm
ra max 2mm
fo 13
