SKU: 6316-2Z/VA208-SKF

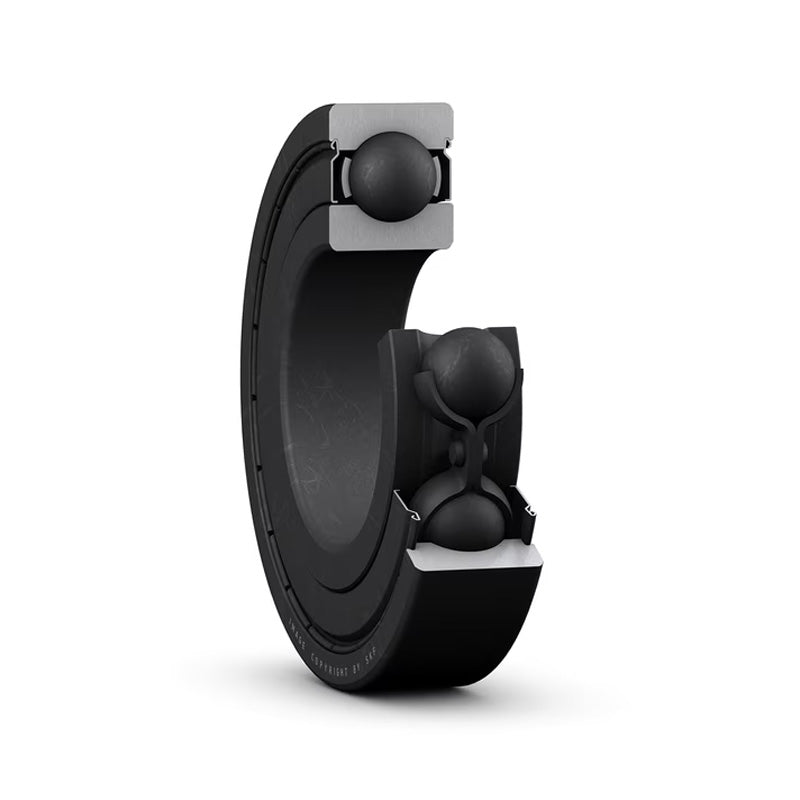

SKF 63162ZVA208 Single Row Deep Groove Ball Bearing High Temperature Type 80x170x39mm

Name: SKF 63162ZVA208 Single Row Deep Groove Ball Bearing High Temperature Type 80x170x39mm
Brand: SKF
SKU: 6316-2Z/VA208-SKF
Price: 795.88 USD
Availability: InStock

$795.88 ex VAT

Sale Sold out

In stock

Price Break

10+ $533.10

19+ $503.15

29+ $497.16

39+ $491.17

49+ $485.18

74+ $479.19

99+ $449.24

199+ $443.25

249+ $437.26

499+ $431.27

999+ $419.29

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF VA208 Series High Temperature Bearings: Supplied metal shielded are designed for high temperatures up to + 350 degrees Celsius and down to - 150 degrees Celsius. At temperatures over + 200 dry lubrication pertains. Designed for speeds up to 100rpm without maintenance. Internal clearance is C5 and all have a BLACK PHOSPHATED COATING
Benefits: High temperature resilience, low maintenance

Brand / Quality:: SKF - High Quality
Inside Diameter:: 80mm
Outside Diameter:: 170mm
Width:: 39mm
Seals / Shields:: Metal Shielded
Clearance:: * Standard

Technical

d	80mm
D	170mm
B	39mm
d1	108mm
D2	147mm
r1r2	2.1mm
Basic load rating Co	86.5 kN
Weight	3.55 kg
Max operating temp	+250 deg C
Min operating temp	-40 deg C
Recommended max speed	100 rpm
