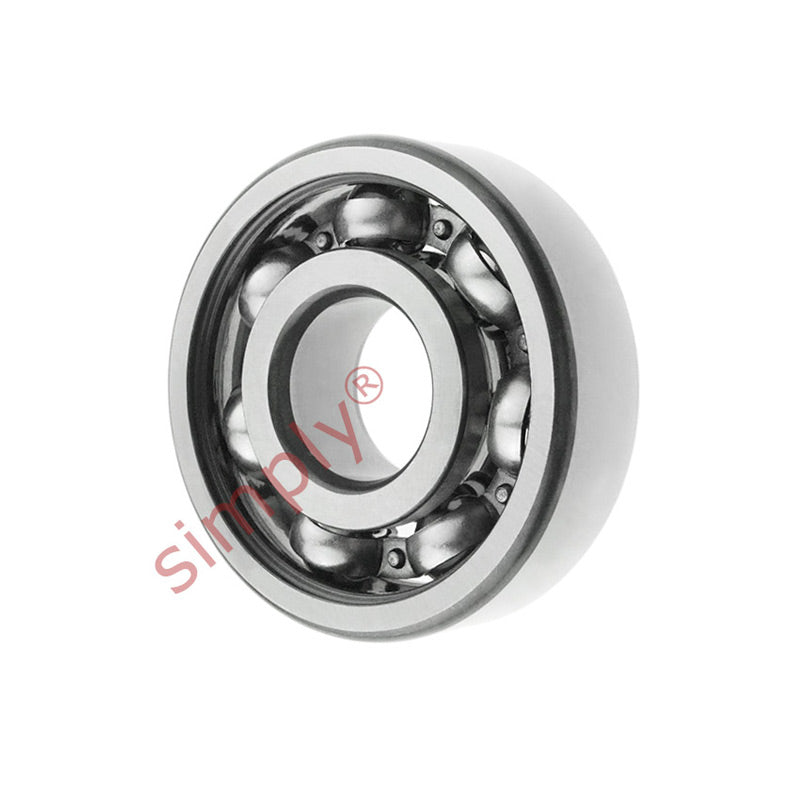

• NTN 6316 Open Type Deep Groove Ball Bearing 80x170x39mm
  • NTN
1 2

SKU: 6316-NTN

NTN 6316 Open Type Deep Groove Ball Bearing 80x170x39mm

NTN 6316 Open Type Deep Groove Ball Bearing 80x170x39mm
$143.74 ex VAT
$143.74 ex VAT
Sale Sold out

Equivalent to: 6316CM 316K 1316 316KS 6316 3316 17B

In stock

Price Break
3+ $96.28
5+ $90.87
10+ $89.79
25+ $88.71
49+ $87.63
74+ $86.54
99+ $81.14
199+ $80.05
249+ $78.97
499+ $77.89
999+ $75.73

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
NTN - High Quality
Inside Diameter:
80mm
Outside Diameter:
170mm
Width:
39mm
Seals / Shields:
None
Clearance:
* Standard
Technical
--- Bearing dimensions
d 80mm
D 170mm
B 39mm
r<sub>s</sub> min 2.1mm
--- Loads angles and speeds
C<sub>r</sub> 136 kN
C<sub>or</sub> 86.5 kN
C<sub>u</sub> 6.05 kN
f<sub>0</sub> 13.3 kN
Grease 4000 rpm
Oil 4700 rpm
--- Fitting Dimensions
d<sub>a</sub> Min. 91mm
D<sub>a</sub> Max. 159mm
r<sub>as</sub> Max. 2mm
Weight 3.59 kg
