SKU: 6316LLBC3/5K-NTN

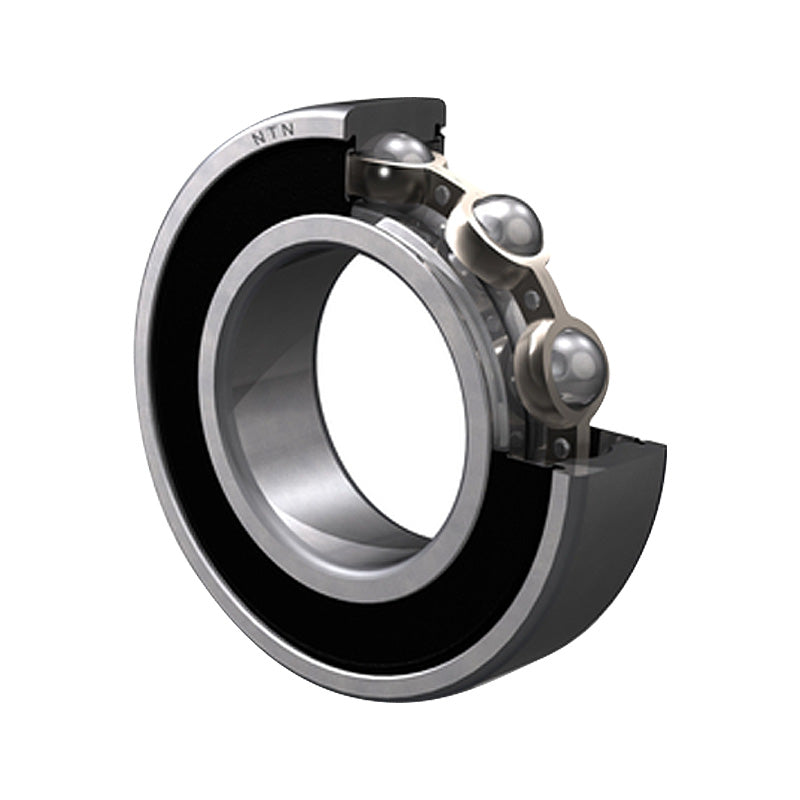

NTN 6316LLBC3/5K Non-Contact Deep Groove Ball Bearing with Low Friction Seals 80x170x39mm - Allow 2-3 Days
NTN 6316LLBC3/5K Non-Contact Deep Groove Ball Bearing with Low Friction Seals 80x170x39mm - Allow 2-3 Days
Regular price
$235.57
ex VAT
Regular price
Sale price
$235.57
ex VAT
Equivalent to: 63162NKEC3 6316VVC3 63162RSLC3 63162RZC3
In stock
Price Break
3+
$175.50
5+
$168.41
10+
$164.86
25+
$159.54
49+
$156.00
74+
$147.13
99+
$124.09
199+
$0.00
249+
$0.00
499+
$0.00
999+
$0.00
Quantity
Couldn't load pickup availability
Share this product
Description
Description
Non Contact Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. Seals can be easily removed for applications that only require 1 seal. |
Note: These bearings are supplied pre-filled with grease, "/5k" refers to the grease: Multemp SRL (-40 deg C to +150 deg C)
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 80mm
- Outside Diameter:
- 170mm
- Width:
- 39mm
- Seals / Shields:
- Low Friction
- Clearance:
- C3
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 80mm |
| D | 170mm |
| B | 39mm |
| r<sub>s</sub> min | 2.1mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 136 kN |
| C<sub>or</sub> | 86.5 kN |
| C<sub>u</sub> | 6.05 kN |
| f<sub>0</sub> | 13.3 kN |
| Grease | 4000 rpm |
| Oil | 4700 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 91mm |
| d<sub>a</sub> Max. | 105mm |
| D<sub>a</sub> Max. | 159mm |
| r<sub>as</sub> Max. | 2mm |
| Weight | 3.59 kg |
