SKU: 6317/C3VL0241-SKF

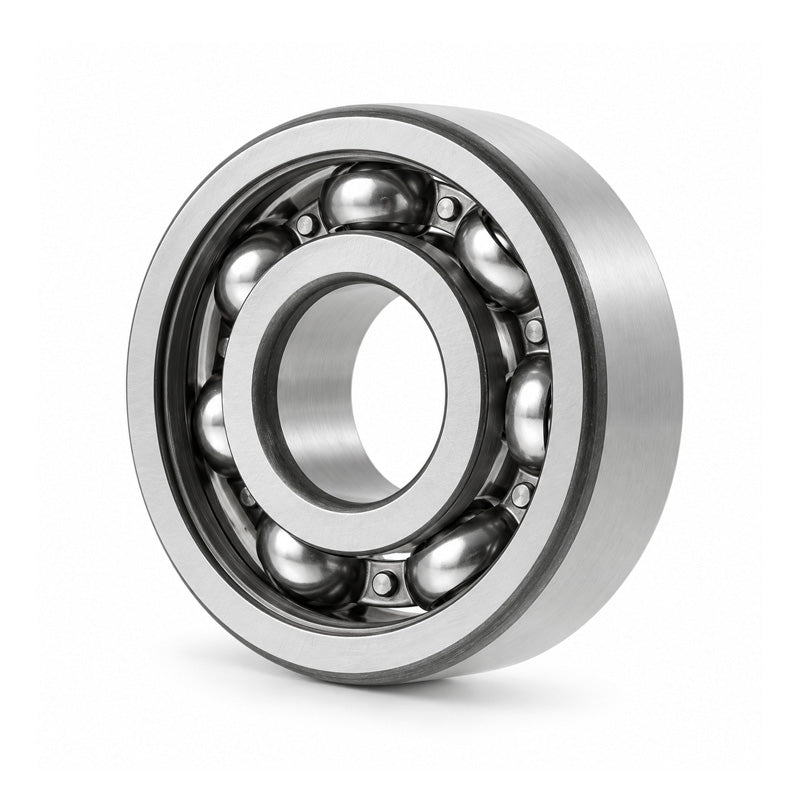

SKF 6317C3VL0241 Insocoat Deep Groove Ball Bearing 85x180x41mm

Name: SKF 6317C3VL0241 Insocoat Deep Groove Ball Bearing 85x180x41mm
Brand: SKF
SKU: 6317/C3VL0241-SKF
Price: 1285.79 USD
Availability: InStock

$1,285.79 ex VAT

Sale Sold out

In stock

Price Break

10+ $861.26

19+ $812.88

29+ $803.20

39+ $793.52

49+ $783.85

74+ $774.17

99+ $725.78

199+ $716.11

249+ $706.43

499+ $696.75

999+ $677.40

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF Insocoat Bearings: Special application bearings that are electrically insulated and capable of withstanding voltages up to 1000v, a layer of aluminium oxide (100µm thickness)
Benefits: Electrically insulated

Brand / Quality:: SKF - High Quality
Inside Diameter:: 85mm
Outside Diameter:: 180mm
Width:: 41mm
Seals / Shields:: None
Clearance:: C3

Technical

d	85mm
D	180mm
B	41mm
Dynamic load Cr	133 kN
Static load Cor	96.5 kN
Fatigue load limit Pu	3.55 kN
Reference speed	8000 rpm
Limiting speed	5000 rpm
Weight	4.1 kg
d1	115mm
D1	152mm
D2	158mm
r1r2 min	3mm
da min	99mm
Da min	163mm
Da max	166mm
ra max	2.5mm
kr	0.03
fo	13
