• NTN 6317 Open Type Deep Groove Ball Bearing 85x180x41mm
  • NTN 6317 Open Type Deep Groove Ball Bearing 85x180x41mm
  • NTN 6317 Open Type Deep Groove Ball Bearing 85x180x41mm
  • NTN
1 4

SKU: 6317-NTN

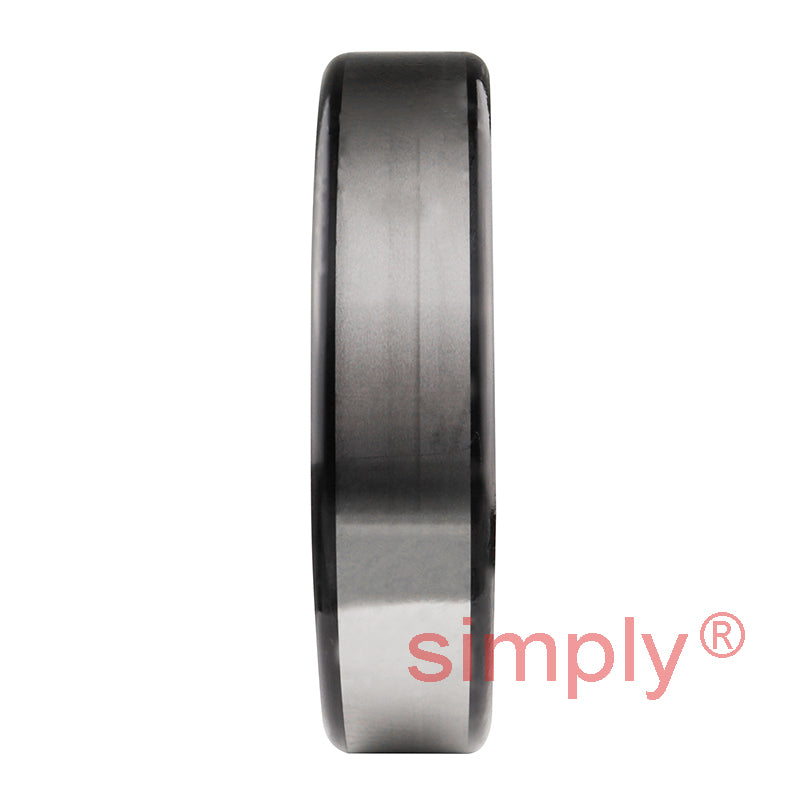

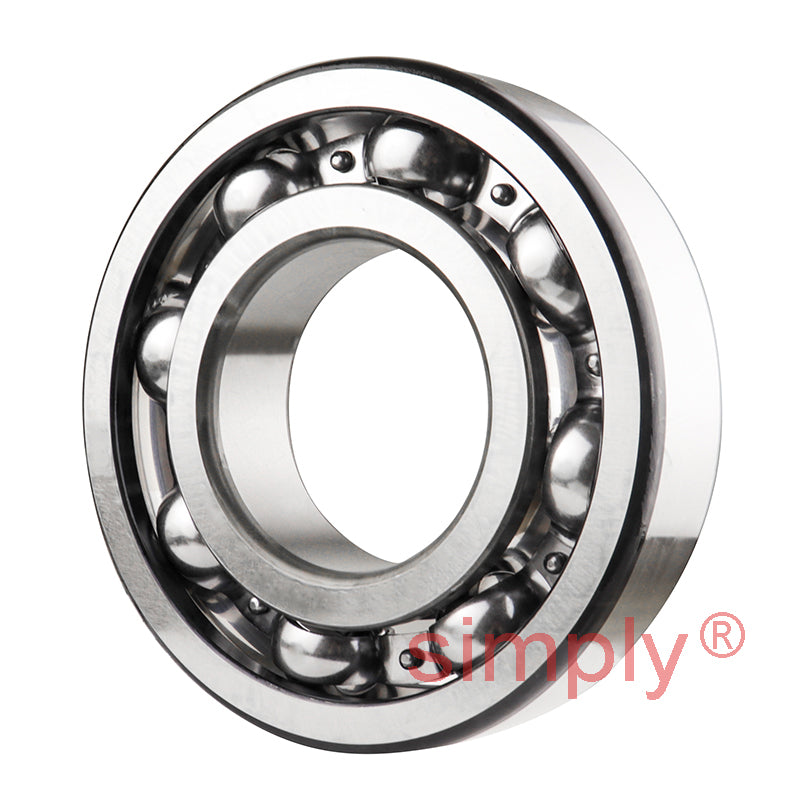

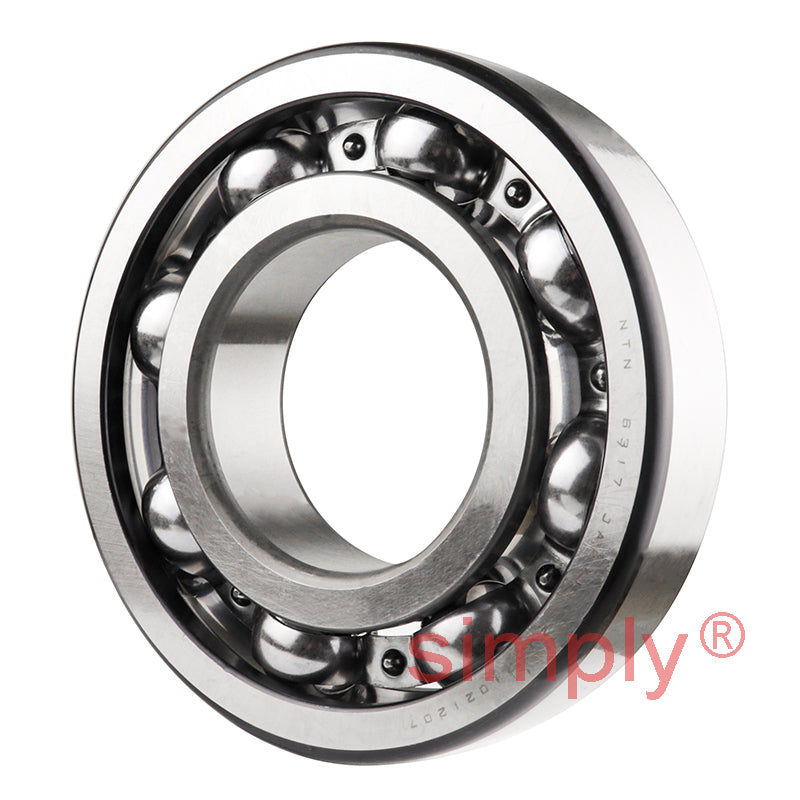

NTN 6317 Open Type Deep Groove Ball Bearing 85x180x41mm

NTN 6317 Open Type Deep Groove Ball Bearing 85x180x41mm
$177.14 ex VAT
$177.14 ex VAT
Sale Sold out

Equivalent to: 6317CM 317K 1317 317KS 6317 3317 18B

In stock

Price Break
3+ $118.65
5+ $111.99
10+ $110.66
25+ $109.32
49+ $107.99
74+ $106.66
99+ $99.99
199+ $98.66
249+ $97.32
499+ $95.99
999+ $93.32

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
NTN - High Quality
Inside Diameter:
85mm
Outside Diameter:
180mm
Width:
41mm
Seals / Shields:
None
Clearance:
* Standard
Technical
--- Bearing dimensions
d 85mm
D 180mm
B 41mm
r<sub>s</sub> min 3mm
--- Loads angles and speeds
C<sub>r</sub> 147 kN
C<sub>or</sub> 97 kN
C<sub>u</sub> 6.55 kN
f<sub>0</sub> 13.3 kN
Grease 3800 rpm
Oil 4500 rpm
--- Fitting Dimensions
d<sub>a</sub> Min. 98mm
D<sub>a</sub> Max. 167mm
r<sub>as</sub> Max. 2.5mm
Weight 4.23 kg
