SKU: 6324/C3VL2071-SKF

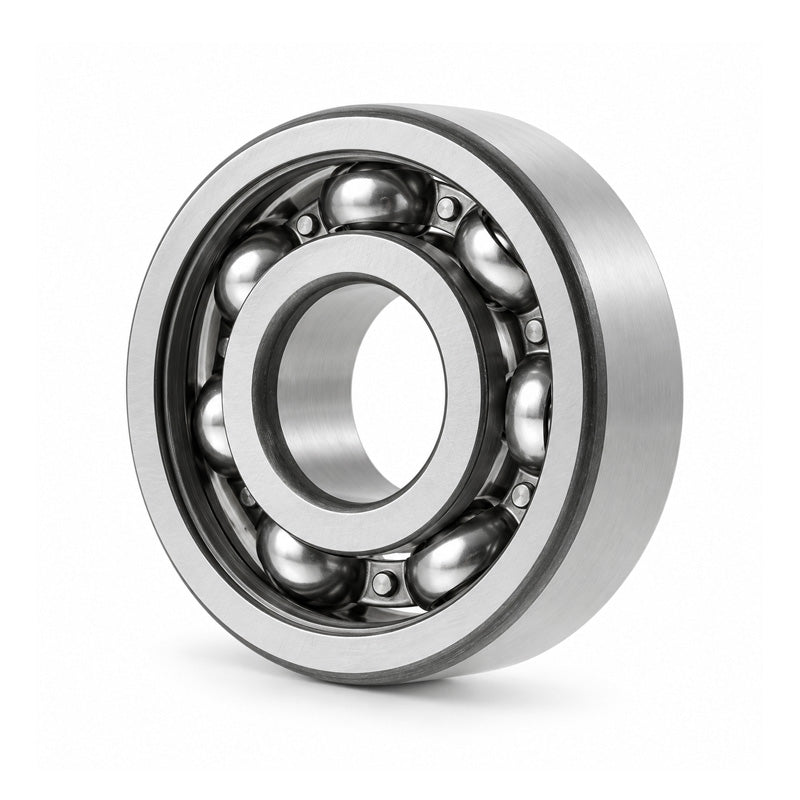

SKF 6324C3VL2071 Insocoat Deep Groove Ball Bearing 120x260x55mm

Name: SKF 6324C3VL2071 Insocoat Deep Groove Ball Bearing 120x260x55mm
Brand: SKF
SKU: 6324/C3VL2071-SKF
Price: 2311.13 USD
Availability: InStock

$2,311.13 ex VAT

Sale Sold out

In stock

Price Break

10+ $1,548.06

19+ $1,461.09

29+ $1,443.70

39+ $1,426.31

49+ $1,408.91

74+ $1,391.52

99+ $1,304.55

199+ $1,287.15

249+ $1,269.76

499+ $1,252.37

999+ $1,217.58

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF Insocoat Bearings: Special application bearings that are electrically insulated and capable of withstanding voltages up to 1000v, a layer of aluminium oxide (100µm thickness)
Benefits: Electrically insulated

Brand / Quality:: SKF - High Quality
Inside Diameter:: 120mm
Outside Diameter:: 260mm
Width:: 55mm
Seals / Shields:: None
Clearance:: C3

Technical

d	120mm
D	260mm
B	55mm
Dynamic load Cr	208 kN
Static load Cor	186 kN
Fatigue load limit Pu	5.7 kN
Reference speed	5600 rpm
Limiting speed	3400 rpm
Weight	12.2 kg
d1	164mm
D1	216mm
r1r2 min	3mm
da min	134mm
da max	158mm
Da max	246mm
ra max	2.5mm
kr	0.03
fo	14
