SKU: 6324LLUC3/2AS-NTN

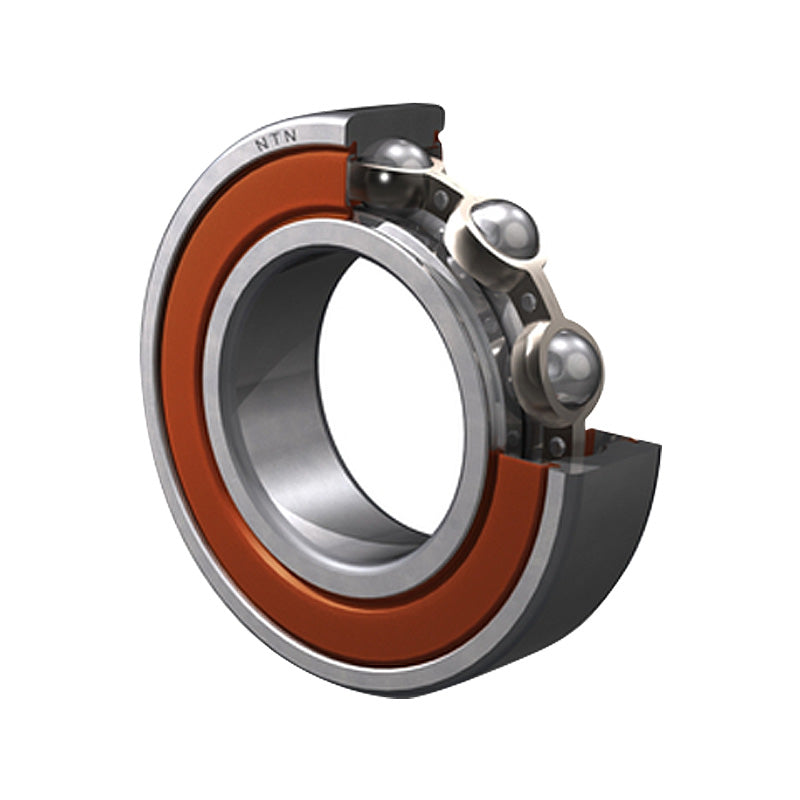

NTN 6324LLUC3/2AS Contact Rubber Sealed Type Deep Groove Ball Bearing 120x260x55mm - Allow 2-3 Days
Equivalent to: 6324NSEC3 6324DUC3 6324RSC3 6324RSHC3 6324PC3 6324RSRC3 6324LUC3 63242NSEC3 6324DDUC3 63242RSC3 6324-2RSC3 63242RS1C3 63242RSHC3 6324PPC3 63242RSRC3 6324LLUC3 6324RS2C3 63242RS2C3 63242RSLC3 6324LFSC3 6324EEC3 324PC3 324SZC3 Z9624C3 1324RC3
In stock
Price Break
Couldn't load pickup availability
Description
Contact Rubber Sealed Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of its simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two contact rubber seals in contact with the inner ring.
Benefits: High-running accuracy and high-speed operation, excellent grease sealing at low speeds, excellent protection against dust and water.
Note: These bearings are supplied pre-filled with grease, "/2AS" refers to Shell Alvania Grease S2
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 120mm
- Outside Diameter:
- 260mm
- Width:
- 55mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- C3
Technical
| --- | Bearing dimensions |
|---|---|
| d | 120mm |
| D | 260mm |
| B | 55mm |
| r<sub>s</sub> min | 3mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 229 kN |
| C<sub>or</sub> | 185 kN |
| C<sub>u</sub> | 10.5 kN |
| f<sub>0</sub> | 13.5 kN |
| Speed | 1700 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 133mm |
| d<sub>a</sub> Max. | 162mm |
| D<sub>a</sub> Max. | 247mm |
| r<sub>as</sub> Max. | 2.5mm |
| Weight Kg | 12.4 kg |
