SKU: 6330/C3VL2071-SKF

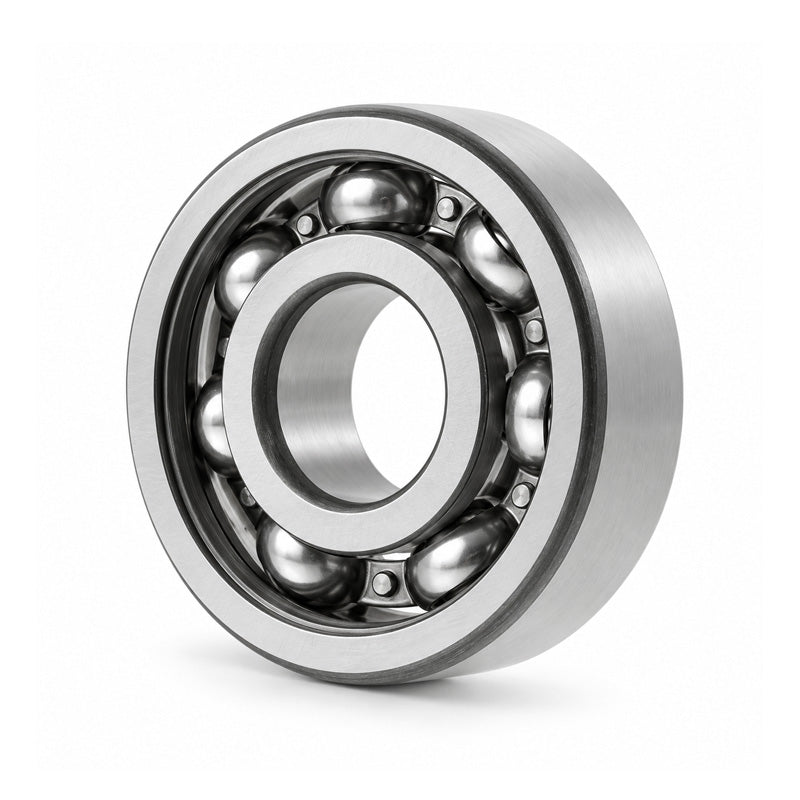

SKF 6330C3VL2071 Insocoat Deep Groove Ball Bearing 150x320x65mm

Name: SKF 6330C3VL2071 Insocoat Deep Groove Ball Bearing 150x320x65mm
Brand: SKF
SKU: 6330/C3VL2071-SKF
Price: 4187.40 USD
Availability: InStock

$4,187.40 ex VAT

Sale Sold out

In stock

Price Break

10+ $2,804.85

19+ $2,647.27

29+ $2,615.76

39+ $2,584.24

49+ $2,552.73

74+ $2,521.21

99+ $2,363.64

199+ $2,332.12

249+ $2,300.61

499+ $2,269.09

999+ $2,206.06

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF Insocoat Bearings: Special application bearings that are electrically insulated and capable of withstanding voltages up to 1000v, a layer of aluminium oxide (100µm thickness)
Benefits: Electrically insulated

Brand / Quality:: SKF - High Quality
Inside Diameter:: 150mm
Outside Diameter:: 320mm
Width:: 65mm
Seals / Shields:: None
Clearance:: C3

Technical

d	150mm
D	320mm
B	65mm
Dynamic load Cr	276 kN
Static load Cor	285 kN
Fatigue load limit Pu	7.8 kN
Reference speed	4300 rpm
Limiting speed	4000 rpm
Weight	22.8 kg
d1	206mm
D1	265mm
r1r2 min	4mm
da min	167mm
da max	200mm
Da max	303mm
ra max	3mm
kr	0.03
fo	14
