SKU: 6332-M/C4-FAG

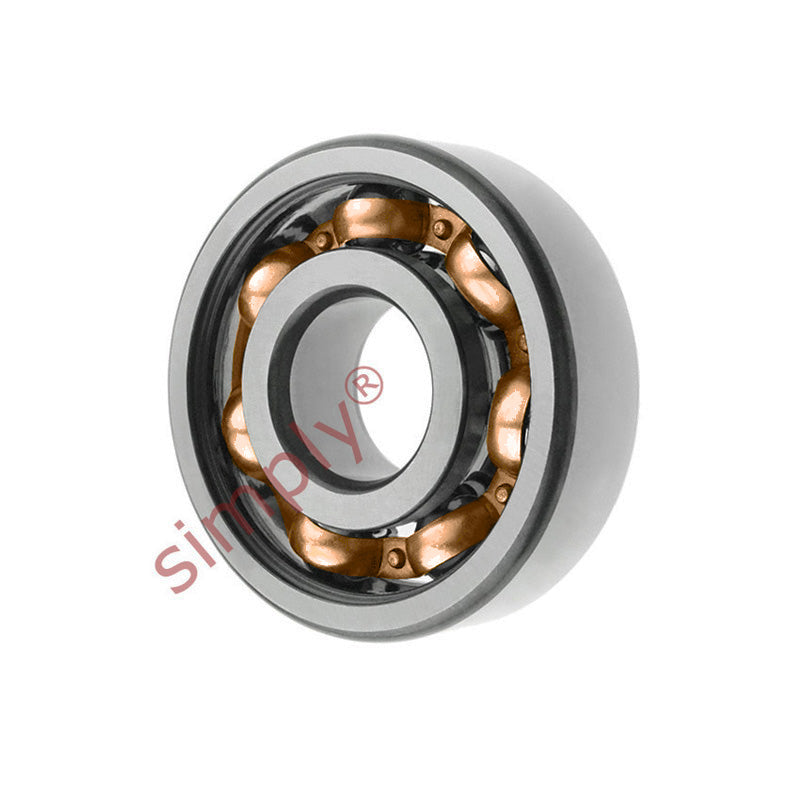

FAG 6332M/C4 Open Deep Groove Ball Bearing with Brass Cage 160x340x68mm

Name: FAG 6332M/C4 Open Deep Groove Ball Bearing with Brass Cage 160x340x68mm
Brand: FAG
SKU: 6332-M/C4-FAG
Price: 1293.92 USD
Availability: InStock

$1,293.92 ex VAT

Sale Sold out

In stock

Price Break

10+ $866.71

19+ $818.02

29+ $808.28

39+ $798.54

49+ $788.80

74+ $779.06

99+ $730.37

199+ $720.63

249+ $710.90

499+ $701.16

999+ $681.68

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: FAG - High Quality
Inside Diameter:: 160mm
Outside Diameter:: 340mm
Width:: 68mm
Seals / Shields:: None
Clearance:: C4

Technical

Inside Diameter	160mm
Outside Diameter	340mm
Width	68mm
Cage Type	Solid Brass Cage
D1	282.8mm
d1	219mm
Da max	323mm
da min	177mm
ra max	3mm
r min	4mm
Dynamic Load Rating	300000 N
Static Load Rating	320000
Fatigue limit load radial	14400 N
Limiting Speed	3400 1/min
Reference Speed	2800 1/min
Calculation Factor	13.8
