SKU: 635-ZZ-CDX

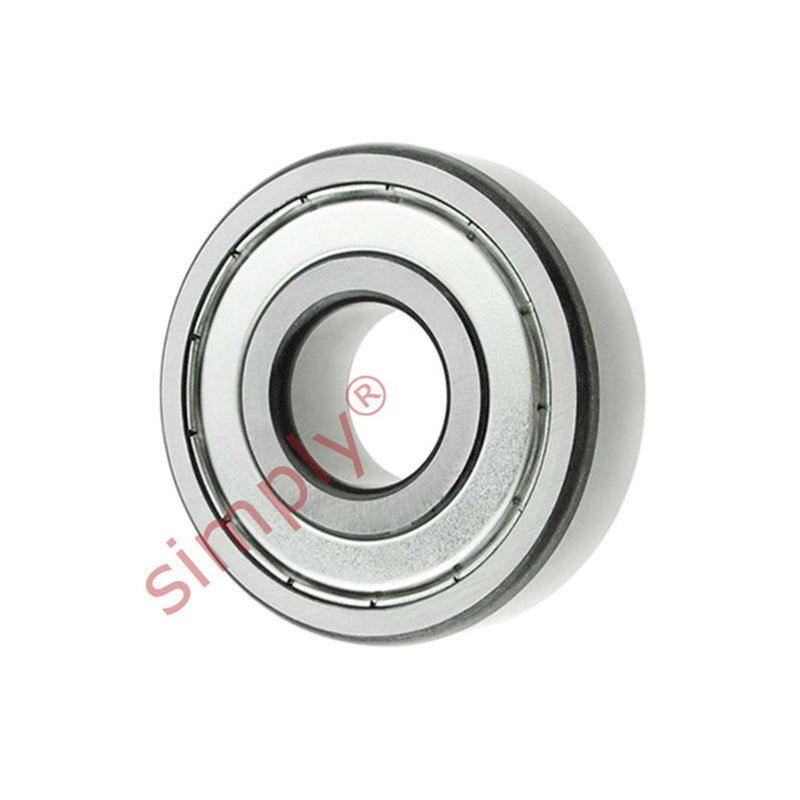

Codex 635ZZ Metal Shielded Deep Groove Ball Bearing 5x19x6mm
Equivalent to: 635ZZ 6352Z 6352ZR 635ZZE 635FF 635DD 635DDC 635KDDC EL5ZZ EL52Z
In stock
Price Break
Couldn't load pickup availability
Share this product
Description
|
Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
- Brand / Quality:
- Codex - Good Quality
- Inside Diameter:
- 5mm
- Outside Diameter:
- 19mm
- Width:
- 6mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
Technical
| d | 5mm |
|---|---|
| D | 19mm |
| B | 6mm |
| Dynamic load C | 2.34 kN |
| Static load Co | 0.95 kN |
| Fatigue load limit Pu | 0.04 |
| Reference speed | 80000 rpm |
| Limiting speed | 40000 rpm |
| Weight | 0.009 kg |
| d1 | 10.7mm |
| D2 | 16.5mm |
| r1r2 min | 0.3mm |
| da min | 7.4mm |
| Da max | 16.6mm |
| ra max | 0.3 |
| Calc factor kr | 0.03 |
| Calc factor Cor f0 | 13 |
