SKU: 638-2Z-NSK

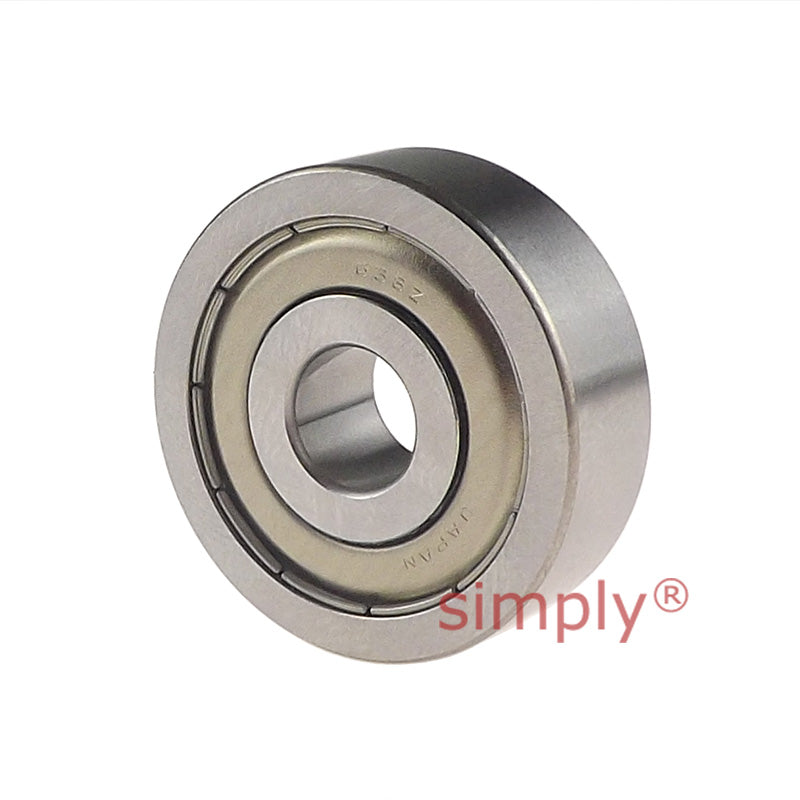

NSK 6382Z Metal Shielded Deep Groove Ball Bearing 8x28x9mm
Equivalent to: 638ZZ 6382ZR
In stock
Price Break
Couldn't load pickup availability
Share this product
Description
Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing.
Shields can be removed for applications that don't require a shield or only require 1 shield.
Benefits: Provides light mechanical protection, limits moisture and dirt ingress, lubricated for life, cost-effective solution.
- Brand / Quality:
- NSK - High Quality
- Inside Diameter:
- 8mm
- Outside Diameter:
- 28mm
- Width:
- 9mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
Technical
| d | 8mm |
|---|---|
| D | 28mm |
| B | 9mm |
| r min | 0.3mm |
| Dynamic load C | 4.508 kN |
| Static load Co | 1.96 kN |
| Max speed | 32000 rpm |
| Mass | 0.01 kg |
