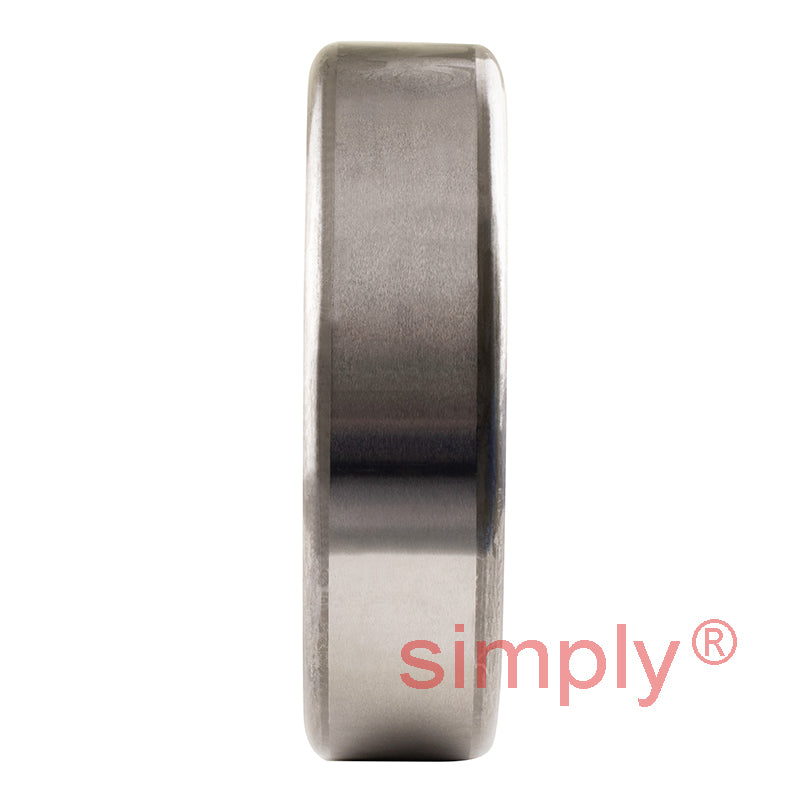

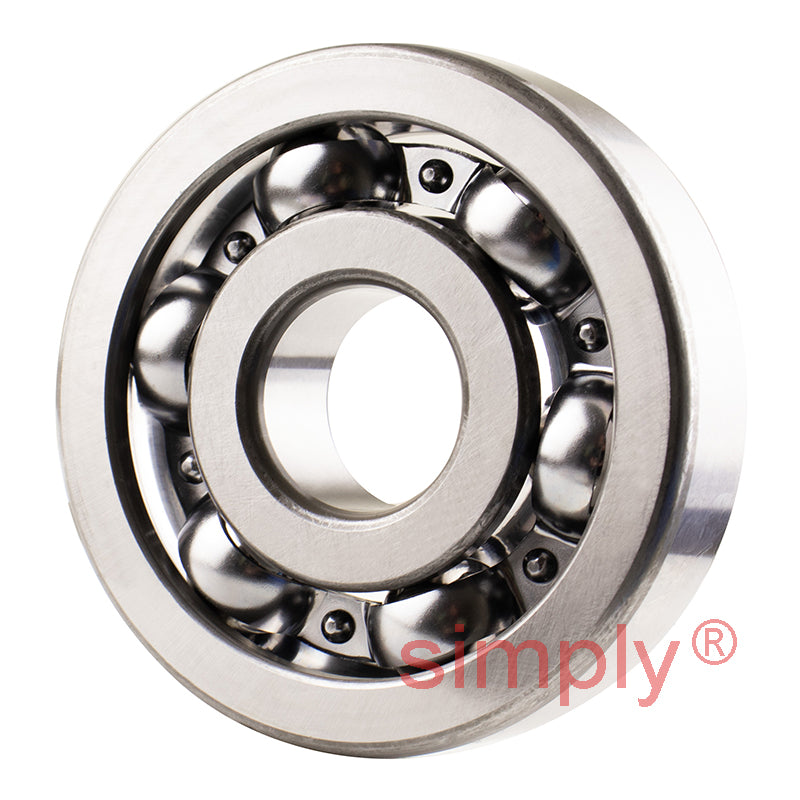

NTN 6405 Open Type Deep Groove Ball Bearing 25x80x21mm

NTN 6405 Open Type Deep Groove Ball Bearing 25x80x21mm
$53.25 ex VAT
$53.25 ex VAT
Sale Sold out

Equivalent to: 6405CM 405K 1405 405S 6405 3405 3C

In stock

Price Break
3+ $35.67
5+ $33.67
10+ $33.27
25+ $32.87
49+ $32.46
74+ $32.06
99+ $30.06
199+ $29.66
249+ $29.26
499+ $28.86
999+ $28.06

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
NTN - High Quality
Inside Diameter:
25mm
Outside Diameter:
80mm
Width:
21mm
Seals / Shields:
None
Clearance:
* Standard
Technical
--- Bearing dimensions
d 25mm
D 80mm
B 21mm
r<sub>s</sub> min 1.5mm
--- Loads angles and speeds
C<sub>r</sub> 38.5 kN
C<sub>or</sub> 17.5 kN
C<sub>u</sub> 1.36 kN
f<sub>0</sub> 11.6 kN
Grease 10000 rpm
Oil 12000 rpm
--- Fitting Dimensions
d<sub>a</sub> Min. 33mm
D<sub>a</sub> Max. 72mm
r<sub>as</sub> Max. 1.5mm
Weight 0.53 kg
