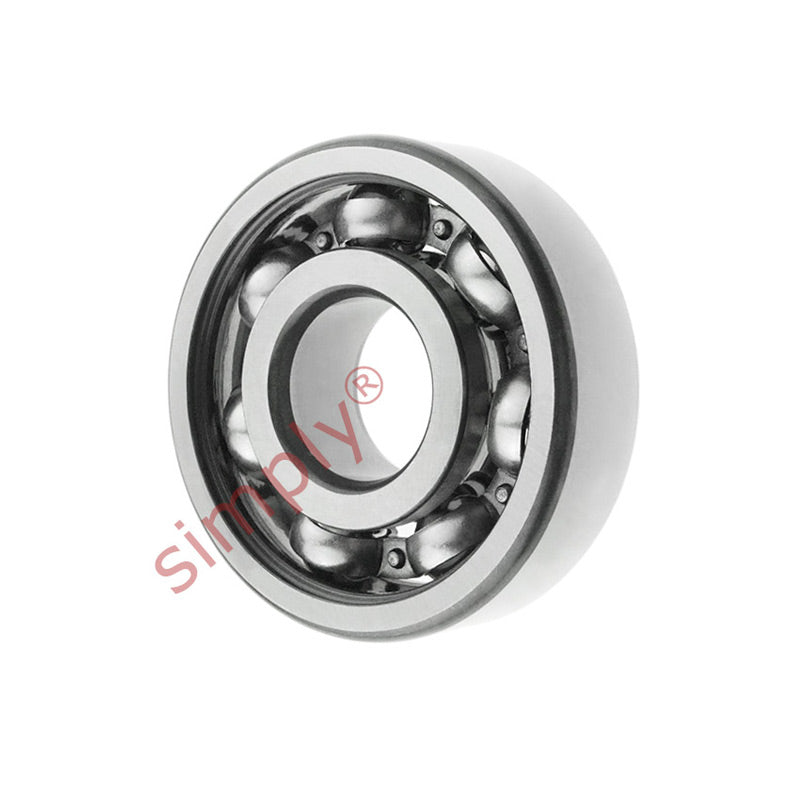

• NTN 6406 Open Type Deep Groove Ball Bearing 30x90x23mm
  • NTN
1 2

SKU: 6406-NTN

NTN 6406 Open Type Deep Groove Ball Bearing 30x90x23mm

NTN 6406 Open Type Deep Groove Ball Bearing 30x90x23mm
$66.98 ex VAT
$66.98 ex VAT
Sale Sold out

Equivalent to: 6406CM 406K 1406 406S 6406 3406 4C

In stock

Price Break
3+ $44.86
5+ $42.34
10+ $41.84
25+ $41.34
49+ $40.83
74+ $40.33
99+ $37.81
199+ $37.30
249+ $36.80
499+ $36.30
999+ $35.29

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available.
Benefits: Used widely in transmissions etc, can be used in oil or greased, cost-effective solution.

Brand / Quality:
NTN - High Quality
Inside Diameter:
30mm
Outside Diameter:
90mm
Width:
23mm
Seals / Shields:
None
Clearance:
* Standard
Technical
--- Bearing dimensions
d 30mm
D 90mm
B 23mm
r<sub>s</sub> min 1.5mm
--- Loads angles and speeds
C<sub>r</sub> 48 kN
C<sub>or</sub> 23.9 kN
C<sub>u</sub> 1.86 kN
f<sub>0</sub> 12.3 kN
Grease 8800 rpm
Oil 10000 rpm
--- Fitting Dimensions
d<sub>a</sub> Min. 38mm
D<sub>a</sub> Max. 82mm
r<sub>as</sub> Max. 1.5mm
Weight 0.735 kg
