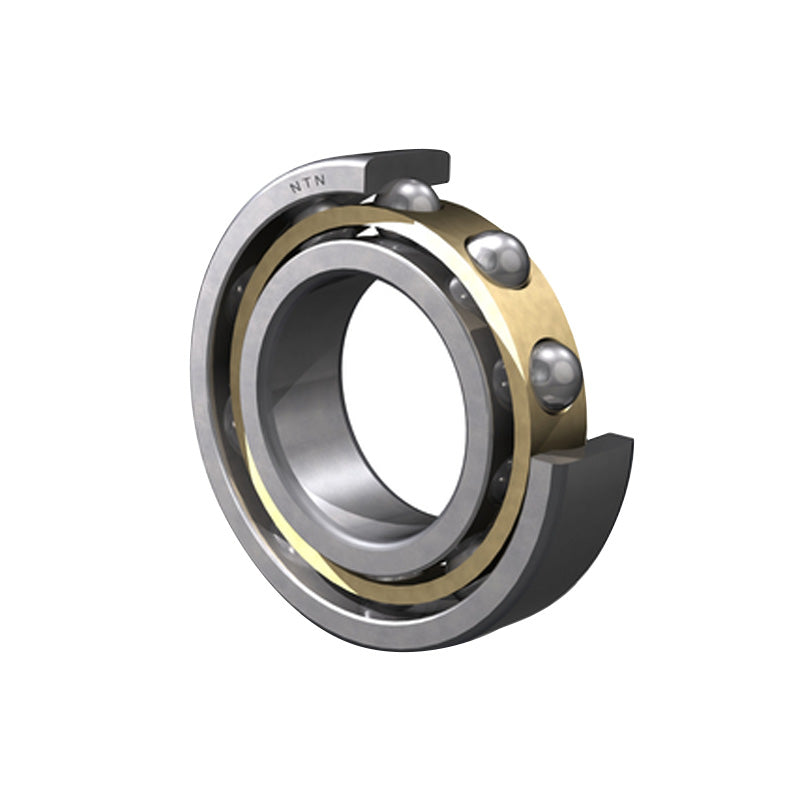

• NTN 68/560L1 Machined Brass Cage Open Type Deep Groove Ball Bearing 560x680x56mm
1 1

SKU: 68/560L1-NTN

NTN 68/560L1 Machined Brass Cage Open Type Deep Groove Ball Bearing 560x680x56mm

NTN 68/560L1 Machined Brass Cage Open Type Deep Groove Ball Bearing 560x680x56mm
$10,641.37 ex VAT
$10,641.37 ex VAT
Sale Sold out

In stock

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
NTN - High Quality
Inside Diameter:
560mm
Outside Diameter:
680mm
Width:
56mm
Seals / Shields:
None
Clearance:
* Standard
Technical
--- Bearing dimensions
d 560mm
D 680mm
B 56mm
r<sub>s</sub> min 3mm
--- Loads angles and speeds
C<sub>r</sub> 370 Kn
C<sub>or</sub> 600 kN
C<sub>u</sub> 16.1 kN
f<sub>0</sub> 16 kN
Grease 710 rpm
Oil 840 rpm
--- Fitting Dimensions
d<sub>a</sub> Min. 573mm
D<sub>a</sub> Max. 667mm
r<sub>as</sub> Max. 2.5mm
Weight 41.5 kg
