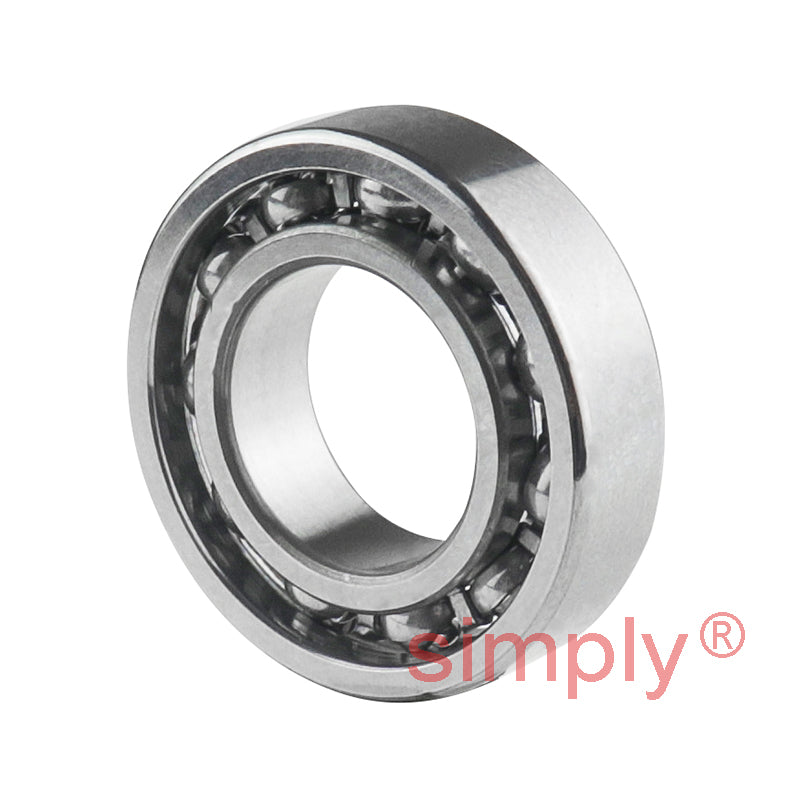

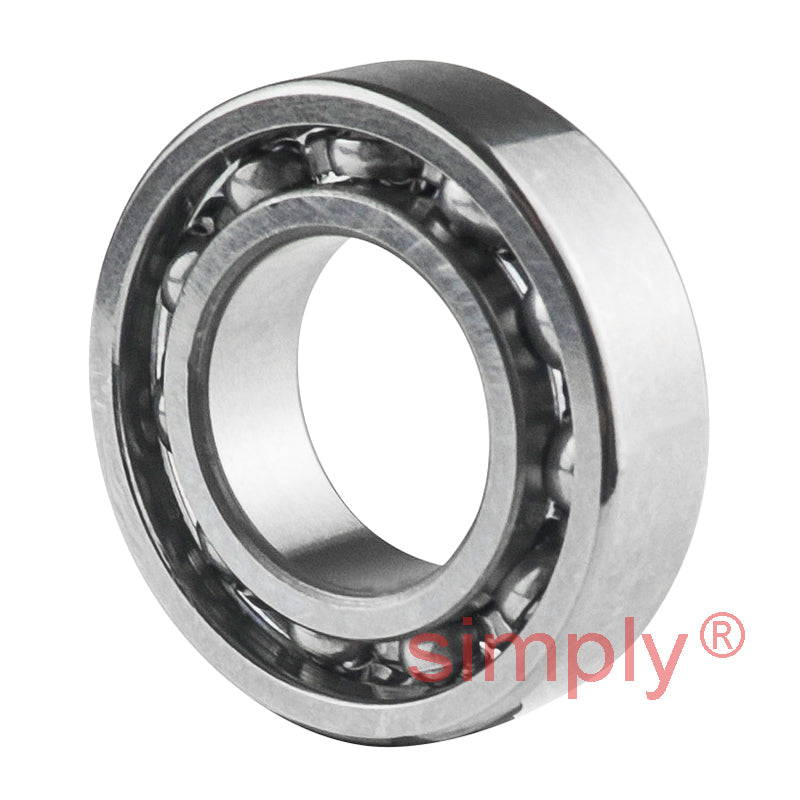

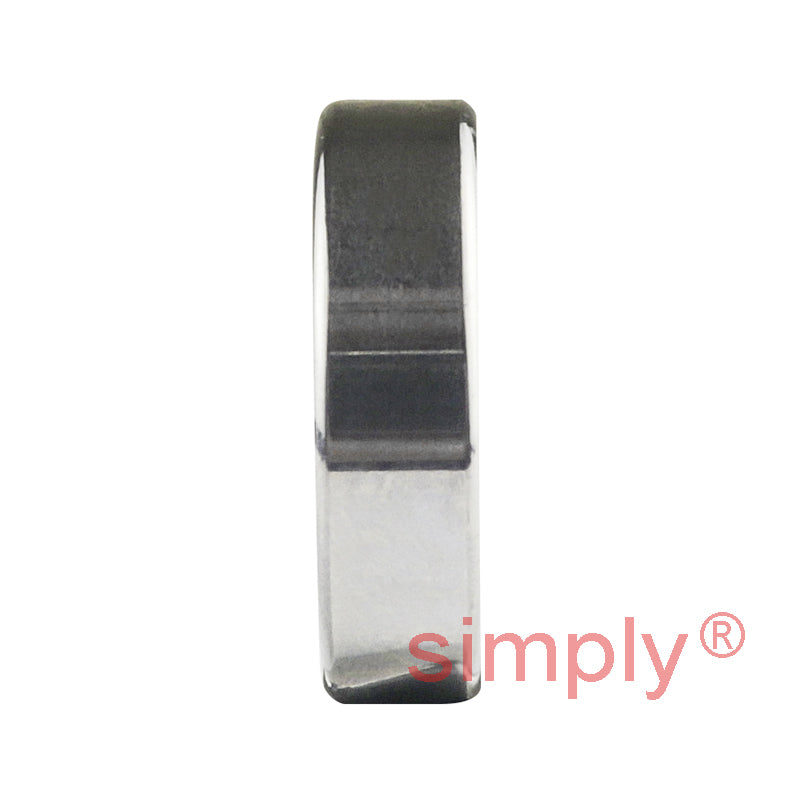

• NTN 6800 Open Type Deep Groove Ball Bearing 10x19x5mm
  • NTN 6800 Open Type Deep Groove Ball Bearing 10x19x5mm
  • NTN 6800 Open Type Deep Groove Ball Bearing 10x19x5mm
  • NTN
1 4

SKU: 6800-NTN

NTN 6800 Open Type Deep Groove Ball Bearing 10x19x5mm

NTN 6800 Open Type Deep Groove Ball Bearing 10x19x5mm
$13.07 ex VAT
$13.07 ex VAT
Sale Sold out

Equivalent to: 6800CM 61800CM 61800T 61800 1800S L1910 61800

In stock

Price Break
3+ $8.76
5+ $8.27
10+ $8.17
25+ $8.07
49+ $7.97
74+ $7.87
99+ $7.38
199+ $7.28
249+ $7.18
499+ $7.08
999+ $6.89

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
NTN - High Quality
Inside Diameter:
10mm
Outside Diameter:
19mm
Width:
5mm
Seals / Shields:
None
Clearance:
* Standard
Technical
--- Bearing dimensions
d 10mm
D 19mm
B 5mm
r<sub>s</sub> min 0.3mm
--- Loads angles and speeds
C<sub>r</sub> 2.03 kN
C<sub>or</sub> 0.925 kN
C<sub>u</sub> 0.072 kN
f<sub>0</sub> 14.8 kN
Grease 32000 rpm
Oil 38000 rpm
--- Fitting Dimensions
d<sub>a</sub> Min. 12mm
D<sub>a</sub> Max. 17mm
r<sub>as</sub> Max. 0.3mm
Weight 0.005 kg
