SKU: 6803/C3-NACHI

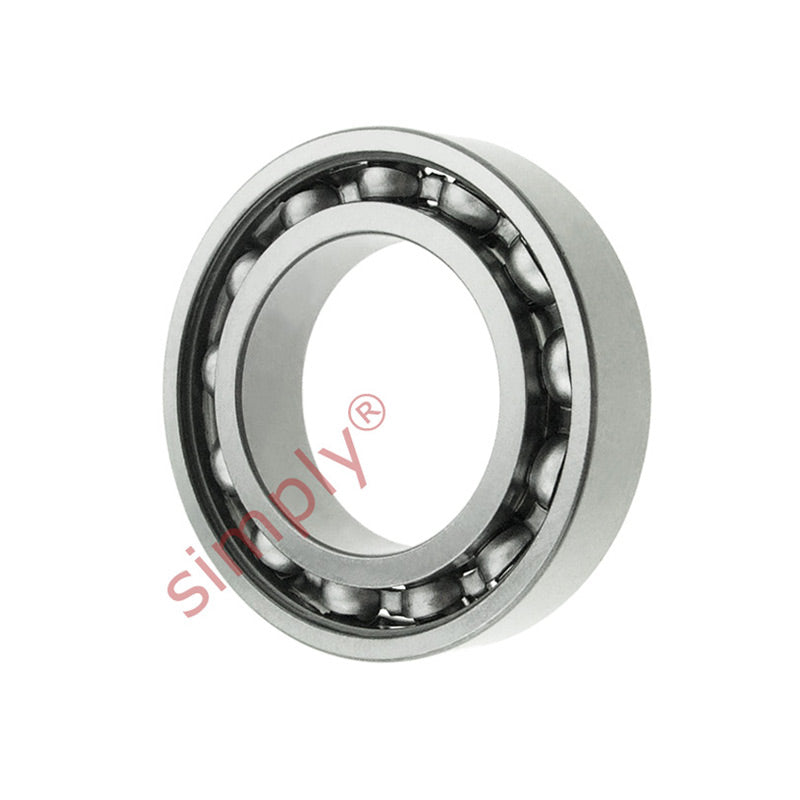

NACHI 6803C3 Thin Section Open Deep Groove Ball Bearing 17x26x5mm
NACHI 6803C3 Thin Section Open Deep Groove Ball Bearing 17x26x5mm
Equivalent to: 61803C3
Out of stock
Description
Description
|
NACHI Open Type Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This type of bearing consists of inner and outer rings, balls and a cage. Benefits: High-running accuracy and high-speed operation. |
- Brand / Quality:
- Nachi - High Quality
- Inside Diameter:
- 17mm
- Outside Diameter:
- 26mm
- Width:
- 5mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical
| Inside Diameter d | 17mm |
|---|---|
| Outside Diameter D | 26mm |
| Width B | 5mm |
| Min radius r | 0.3mm |
| Dynamic load | 2630 kN |
| Static load | 1570 kN |
| Max speed in oil | 30000 rpm |
| Max speed in grease | 26000 rpm |
| da min | 19mm |
| Da max | 24mm |
| ra max | 0.3mm |
| Weight | 0.008 kg |
