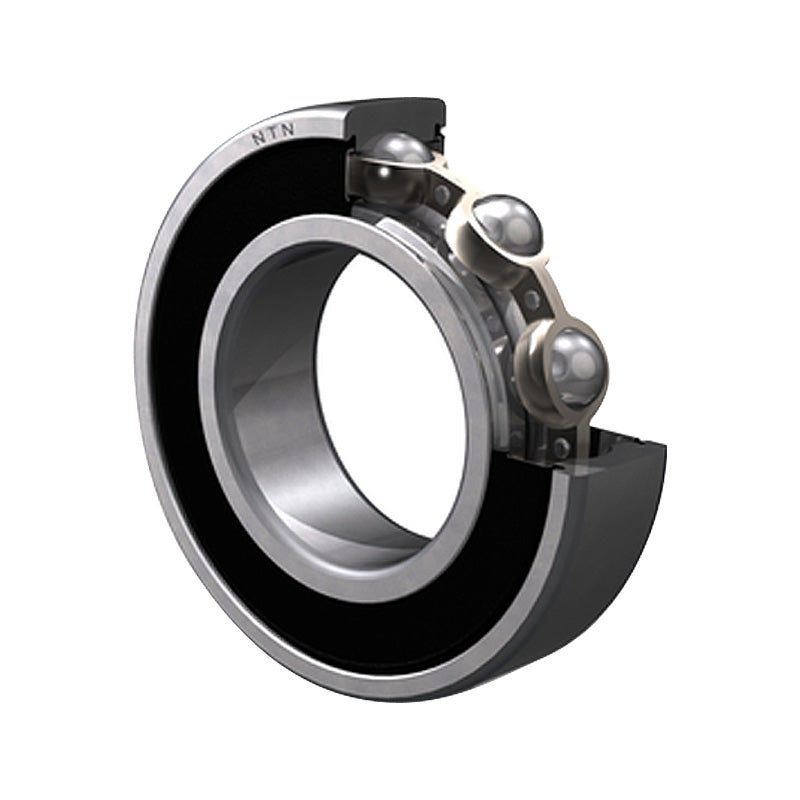

• NTN 6803LLB/5K Non-Contact Deep Groove Ball Bearing with Low Friction Seals 17x26x5mm
1 1

SKU: 6803LLB/5K-NTN

NTN 6803LLB/5K Non-Contact Deep Groove Ball Bearing with Low Friction Seals 17x26x5mm

NTN 6803LLB/5K Non-Contact Deep Groove Ball Bearing with Low Friction Seals 17x26x5mm
$16.86 ex VAT
$16.86 ex VAT
Sale Sold out

Equivalent to: 6803LLBCM 61803LLBCM 6803LLB 61803LLB 68032NKE 6803VV 68032RSL 68032RZ

In stock

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
DESC_NSDGB
Note: These bearings are supplied pre-filled with grease, "/5k" refers to the grease: Multemp SRL (-40 deg C to +150 deg C)
Brand / Quality:
NTN - High Quality
Inside Diameter:
17mm
Outside Diameter:
26mm
Width:
5mm
Seals / Shields:
Low Friction
Clearance:
* Standard
Technical
--- Bearing dimensions
d 17mm
D 26mm
B 5mm
r<sub>s</sub> min 0.3mm
--- Loads angles and speeds
C<sub>r</sub> 2.47 kN
C<sub>or</sub> 1.46 kN
C<sub>u</sub> 0.102 kN
f<sub>0</sub> 16.1 kN
Grease 24000 rpm
Oil 28000 rpm
--- Fitting Dimensions
d<sub>a</sub> Min. 19mm
d<sub>a</sub> Max. 19.5mm
D<sub>a</sub> Max. 24mm
r<sub>as</sub> Max. 0.3mm
Weight 0.008 kg
