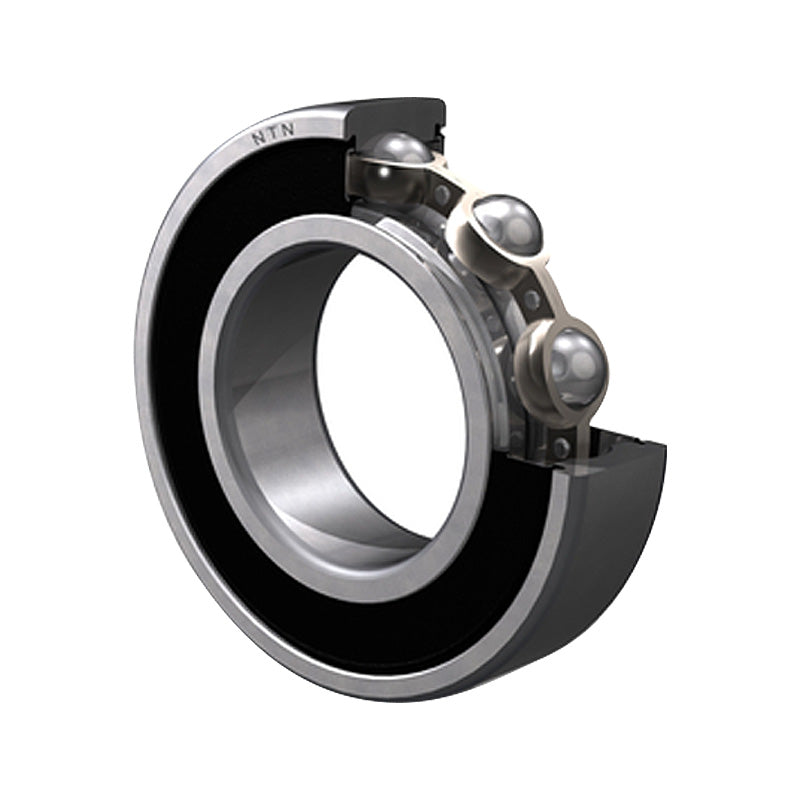

• NTN 6804JRLLB/5K Non-Contact Deep Groove Ball Bearing with Low Friction Seals 20x32x7mm
1 1

SKU: 6804JRLLB/5K-NTN

NTN 6804JRLLB/5K Non-Contact Deep Groove Ball Bearing with Low Friction Seals 20x32x7mm

NTN 6804JRLLB/5K Non-Contact Deep Groove Ball Bearing with Low Friction Seals 20x32x7mm
$22.43 ex VAT
$22.43 ex VAT
Sale Sold out

Equivalent to: 6804JRLLBCM 61804JRLLBCM 6804JRLLB 61804JRLLB 68042NKE 6804VV 68042RSL 68042RZ

In stock

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
DESC_NSDGB
Note: These bearings are supplied pre-filled with grease, "/5k" refers to the grease: Multemp SRL (-40 deg C to +150 deg C)
Brand / Quality:
NTN - High Quality
Inside Diameter:
20mm
Outside Diameter:
32mm
Width:
7mm
Seals / Shields:
Low Friction
Clearance:
* Standard
Technical
--- Bearing dimensions
d 20mm
D 32mm
B 7mm
r<sub>s</sub> min 0.3mm
--- Loads angles and speeds
C<sub>r</sub> 4.45 kN
C<sub>or</sub> 2.47 kN
C<sub>u</sub> 0.185 kN
f<sub>0</sub> 15.5 kN
Grease 21000 rpm
Oil 25000 rpm
--- Fitting Dimensions
d<sub>a</sub> Min. 22mm
d<sub>a</sub> Max. 22.5mm
D<sub>a</sub> Max. 30mm
r<sub>as</sub> Max. 0.3mm
Weight 0.019 kg
