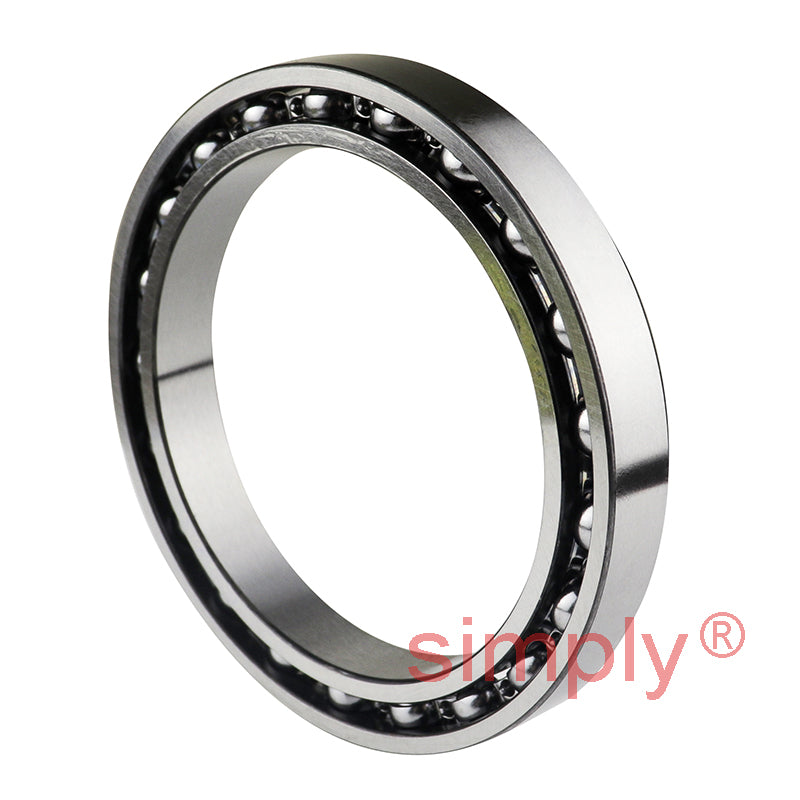

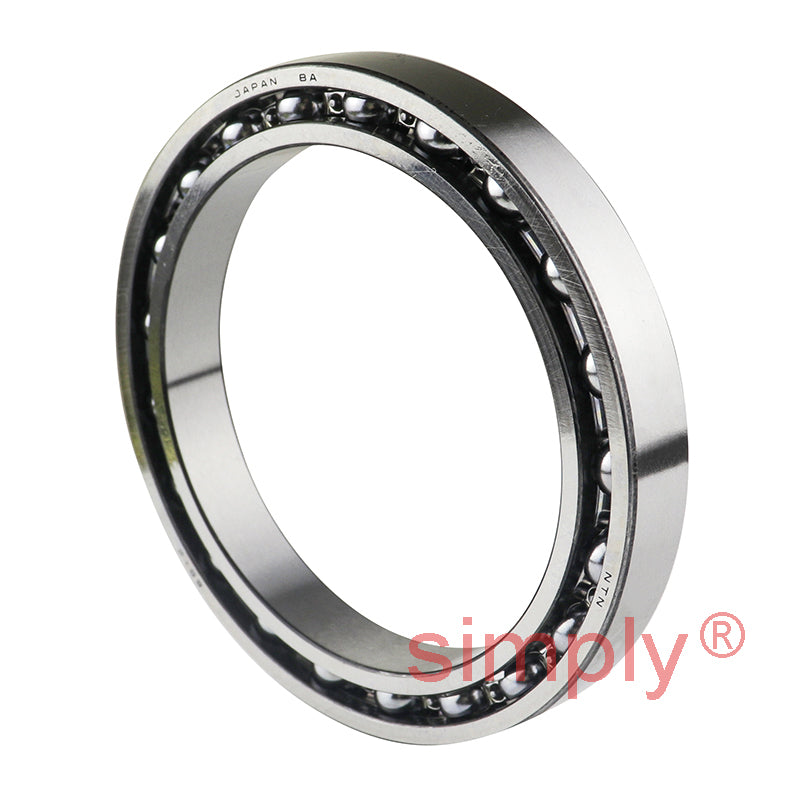

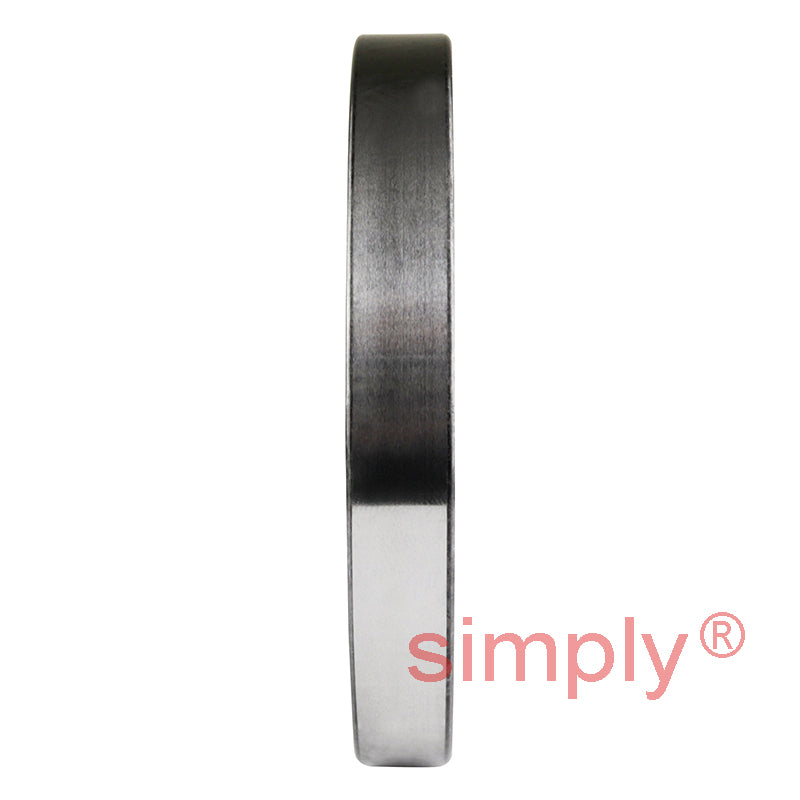

NTN 6812 Open Type Deep Groove Ball Bearing 60x78x10mm

NTN 6812 Open Type Deep Groove Ball Bearing 60x78x10mm
$73.46 ex VAT
$73.46 ex VAT
Sale Sold out

Equivalent to: 6812CM 61812CM 61812T 61812 1812S 61812Y

In stock

Price Break
3+ $49.21
5+ $46.44
10+ $45.89
25+ $45.34
49+ $44.78
74+ $44.23
99+ $41.47
199+ $40.91
249+ $40.36
499+ $39.81
999+ $38.70

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
NTN - High Quality
Inside Diameter:
60mm
Outside Diameter:
78mm
Width:
10mm
Seals / Shields:
None
Clearance:
* Standard
Technical
--- Bearing dimensions
d 60mm
D 78mm
B 10mm
r<sub>s</sub> min 0.3mm
--- Loads angles and speeds
C<sub>r</sub> 12.7 kN
C<sub>or</sub> 10.6 kN
C<sub>u</sub> 0.705 kN
f<sub>0</sub> 16.3 kN
Grease 8000 rpm
Oil 9400 rpm
--- Fitting Dimensions
d<sub>a</sub> Min. 62mm
D<sub>a</sub> Max. 76mm
r<sub>as</sub> Max. 0.3mm
Weight 0.106 kg
