SKU: 6814/C3-NACHI

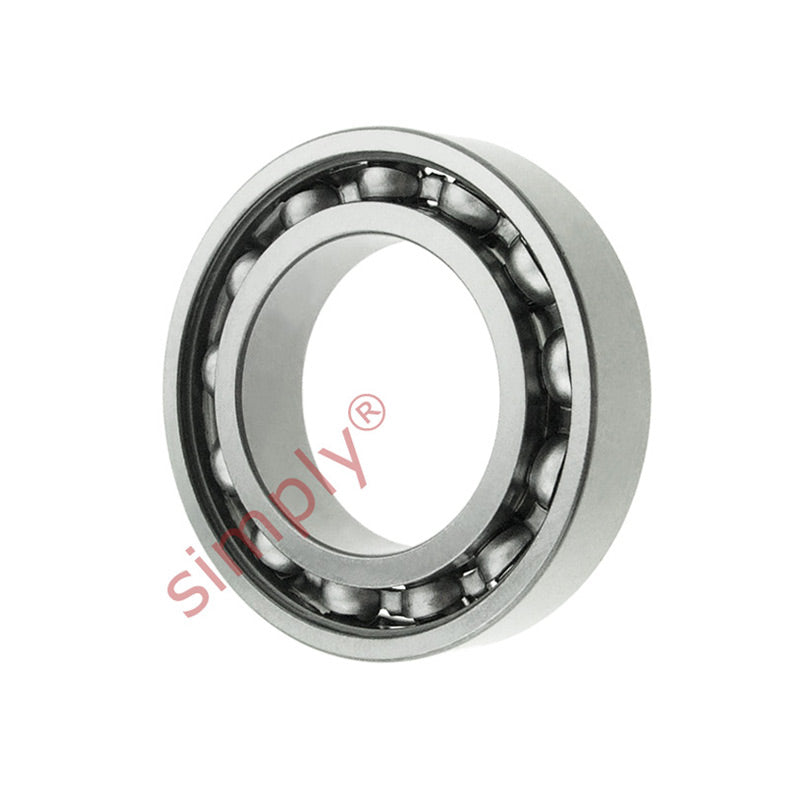

NACHI 6814C3 Thin Section Open Deep Groove Ball Bearing 70x90x10mm
NACHI 6814C3 Thin Section Open Deep Groove Ball Bearing 70x90x10mm
Equivalent to: 61814C3
Out of stock
Description
Description
|
NACHI Open Type Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This type of bearing consists of inner and outer rings, balls and a cage. Benefits: High-running accuracy and high-speed operation. |
- Brand / Quality:
- Nachi - High Quality
- Inside Diameter:
- 70mm
- Outside Diameter:
- 90mm
- Width:
- 10mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical
| Inside Diameter d | 70mm |
|---|---|
| Outside Diameter D | 90mm |
| Width B | 10mm |
| Min radius r | 0.6mm |
| Dynamic load | 12100 kN |
| Static load | 11900 kN |
| Max speed in oil | 8100 rpm |
| Max speed in grease | 7000 rpm |
| da min | 74mm |
| Da max | 86mm |
| ra max | 0.6mm |
| Weight | 0.135 kg |
