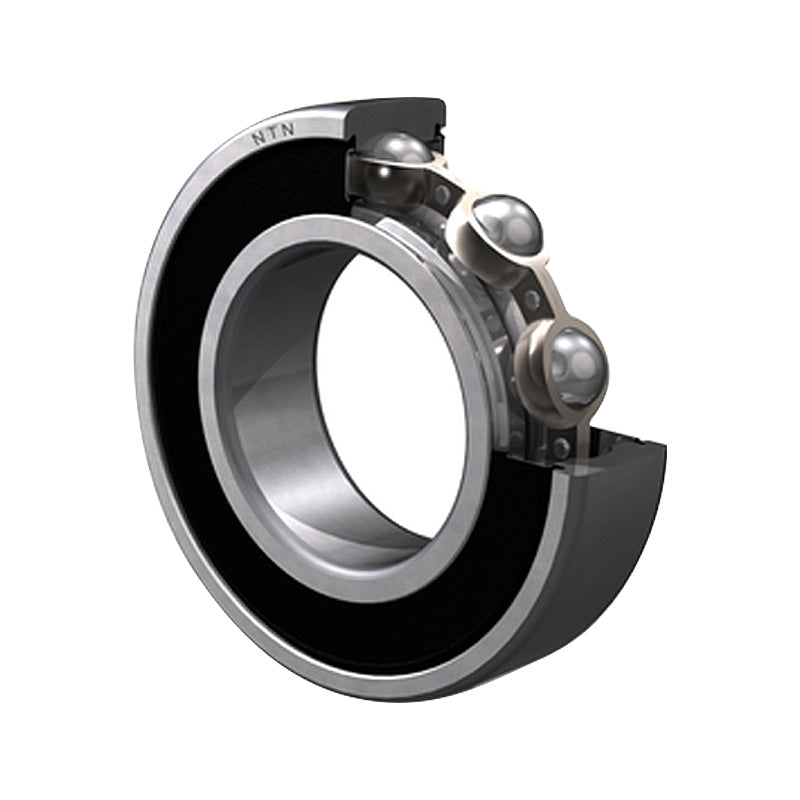

• NTN 6814LLB/5K Non-Contact Deep Groove Ball Bearing with Low Friction Seals 70x90x10mm
1 1

SKU: 6814LLB/5K-NTN

NTN 6814LLB/5K Non-Contact Deep Groove Ball Bearing with Low Friction Seals 70x90x10mm

NTN 6814LLB/5K Non-Contact Deep Groove Ball Bearing with Low Friction Seals 70x90x10mm
$168.53 ex VAT
$168.53 ex VAT
Sale Sold out

Equivalent to: 6814LLBCM 61814LLBCM 6814LLB 61814LLB 68142NKE 6814VV 68142RSL 68142RZ

In stock

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
DESC_NSDGB
Note: These bearings are supplied pre-filled with grease, "/5k" refers to the grease: Multemp SRL (-40 deg C to +150 deg C)
Brand / Quality:
NTN - High Quality
Inside Diameter:
70mm
Outside Diameter:
90mm
Width:
10mm
Seals / Shields:
Low Friction
Clearance:
* Standard
Technical
--- Bearing dimensions
d 70mm
D 90mm
B 10mm
r<sub>s</sub> min 0.6mm
--- Loads angles and speeds
C<sub>r</sub> 13.4 kN
C<sub>or</sub> 11.9 kN
C<sub>u</sub> 0.795 kN
f<sub>0</sub> 16.1 kN
Grease 6900 rpm
Oil 8100 rpm
--- Fitting Dimensions
d<sub>a</sub> Min. 74mm
d<sub>a</sub> Max. 75.5mm
D<sub>a</sub> Max. 86mm
r<sub>as</sub> Max. 0.6mm
Weight 0.137 kg
