• NTN 6818 Open Type Deep Groove Ball Bearing 90x115x13mm
  • NTN 6818 Open Type Deep Groove Ball Bearing 90x115x13mm
  • NTN 6818 Open Type Deep Groove Ball Bearing 90x115x13mm
  • NTN
1 4

SKU: 6818-NTN

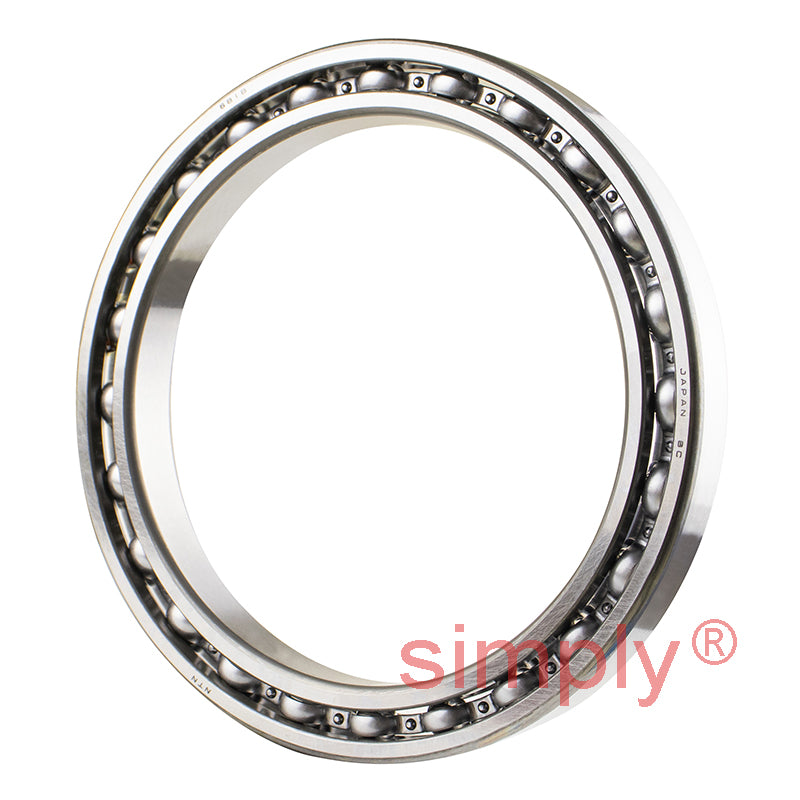

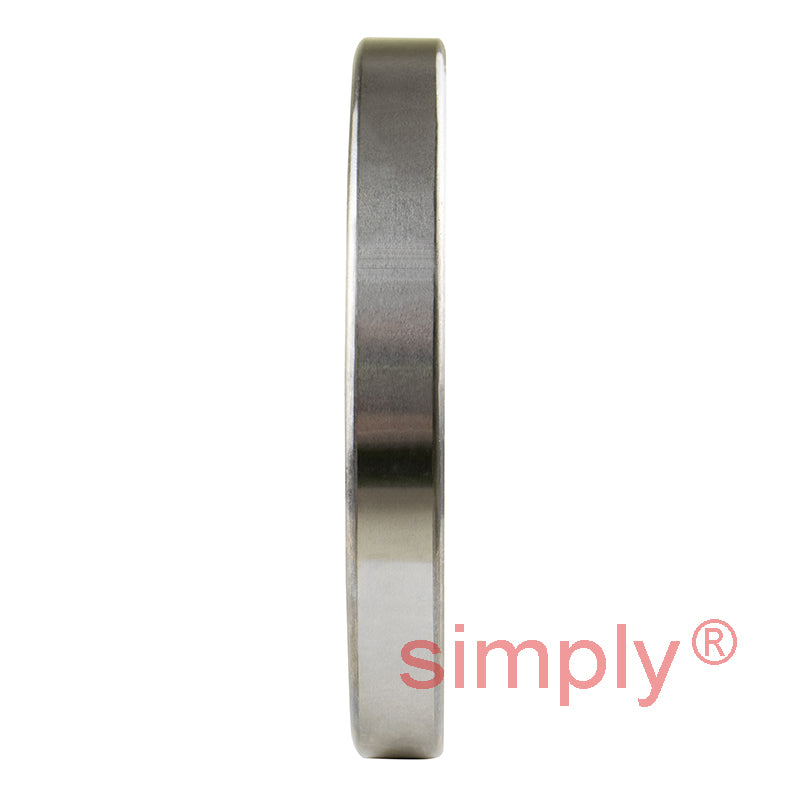

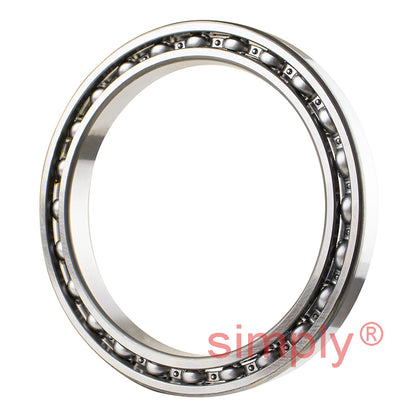

NTN 6818 Open Type Deep Groove Ball Bearing 90x115x13mm

NTN 6818 Open Type Deep Groove Ball Bearing 90x115x13mm
$216.27 ex VAT
$216.27 ex VAT
Sale Sold out

Equivalent to: 6818CM 61818CM 61818T 61818 1818S 61818Y

In stock

Price Break
3+ $144.87
5+ $136.73
10+ $135.10
25+ $133.47
49+ $131.84
74+ $130.22
99+ $122.08
199+ $120.45
249+ $118.82
499+ $117.19
999+ $113.94

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
NTN - High Quality
Inside Diameter:
90mm
Outside Diameter:
115mm
Width:
13mm
Seals / Shields:
None
Clearance:
* Standard
Technical
--- Bearing dimensions
d 90mm
D 115mm
B 13mm
r<sub>s</sub> min 1mm
--- Loads angles and speeds
C<sub>r</sub> 21.1 kN
C<sub>or</sub> 19.7 kN
C<sub>u</sub> 1.3 kN
f<sub>0</sub> 16.1 kN
Grease 5400 rpm
Oil 6300 rpm
--- Fitting Dimensions
d<sub>a</sub> Min. 95mm
D<sub>a</sub> Max. 110mm
r<sub>as</sub> Max. 1mm
Weight 0.285 kg
