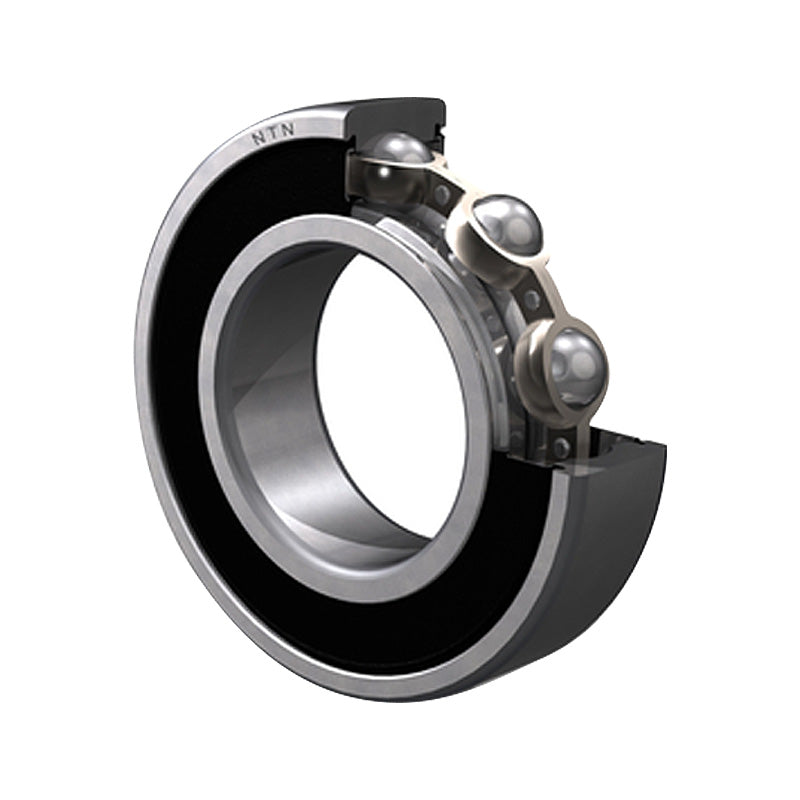

• NTN 6820LLB/5K Non-Contact Deep Groove Ball Bearing with Low Friction Seals 100x125x13mm
1 1

SKU: 6820LLB/5K-NTN

NTN 6820LLB/5K Non-Contact Deep Groove Ball Bearing with Low Friction Seals 100x125x13mm

NTN 6820LLB/5K Non-Contact Deep Groove Ball Bearing with Low Friction Seals 100x125x13mm
$362.14 ex VAT
$362.14 ex VAT
Sale Sold out

Equivalent to: 6820LLBCM 61820LLBCM 6820LLB 61820LLB 68202NKE 6820VV 68202RSL 68202RZ

In stock

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
DESC_NSDGB
Note: These bearings are supplied pre-filled with grease, "/5k" refers to the grease: Multemp SRL (-40 deg C to +150 deg C)
Brand / Quality:
NTN - High Quality
Inside Diameter:
100mm
Outside Diameter:
125mm
Width:
13mm
Seals / Shields:
Low Friction
Clearance:
* Standard
Technical
--- Bearing dimensions
d 100mm
D 125mm
B 13mm
r<sub>s</sub> min 1mm
--- Loads angles and speeds
C<sub>r</sub> 21.7 kN
C<sub>or</sub> 21.2 kN
C<sub>u</sub> 1.33 kN
f<sub>0</sub> 16 kN
Grease 4800 rpm
Oil 5600 rpm
--- Fitting Dimensions
d<sub>a</sub> Min. 105mm
d<sub>a</sub> Max. 106mm
D<sub>a</sub> Max. 120mm
r<sub>as</sub> Max. 1mm
Weight 0.313 kg
