SKU: 6820LLU/5K-NTN

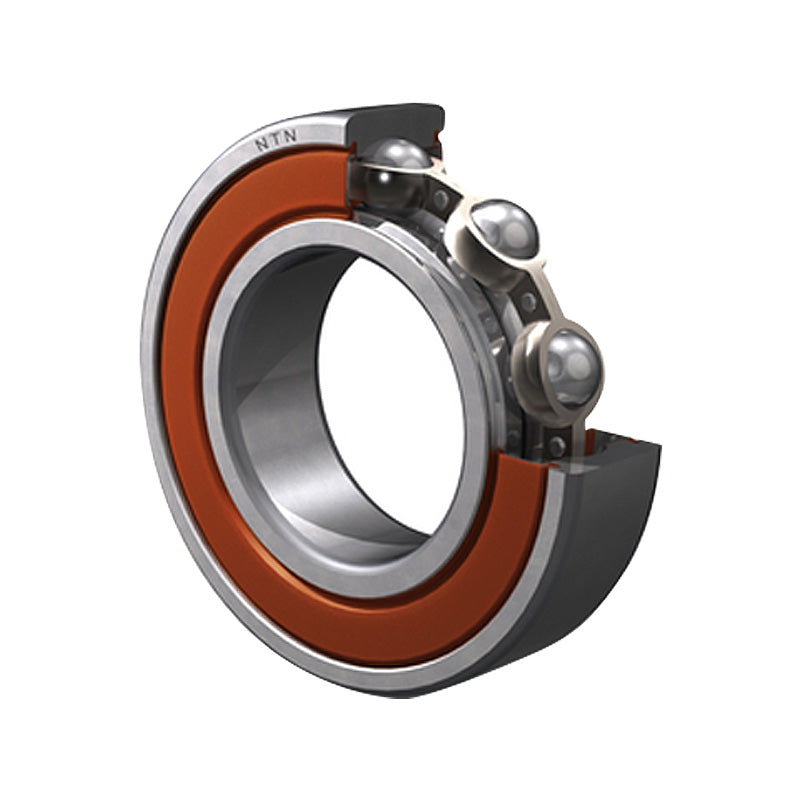

NTN 6820LLU/5K Contact Rubber Sealed Type Deep Groove Ball Bearing 100x125x13mm - Allow 2-3 Days
Equivalent to: 6820LLUCM 61820LLUCM 6820LLU 61820LLU 6820NSE 6820DU 6820RS 6820RSH 6820P 6820RSR 6820LU 68202NSE 6820DDU 68202RS 6820-2RS 68202RS1 68202RSH 6820PP 68202RSR 6820LLU 6820RS2 68202RS2 68202RSL 6820LFS 6820EE 1820SZZ 6820DD
In stock
Price Break
Couldn't load pickup availability
Description
Contact Rubber Sealed Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of its simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two contact rubber seals in contact with the inner ring.
Benefits: High-running accuracy and high-speed operation, excellent grease sealing at low speeds, excellent protection against dust and water.
Note: These bearings are supplied pre-filled with grease, "/5k" refers to the grease: Multemp SRL (-40 deg C to +150 deg C)
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 100mm
- Outside Diameter:
- 125mm
- Width:
- 13mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
| --- | Bearing dimensions |
|---|---|
| d | 100mm |
| D | 125mm |
| B | 13mm |
| r<sub>s</sub> min | 1mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 21.7 kN |
| C<sub>or</sub> | 21.2 kN |
| C<sub>u</sub> | 1.33 kN |
| f<sub>0</sub> | 16 kN |
| Speed | 2700 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 105mm |
| d<sub>a</sub> Max. | 106mm |
| D<sub>a</sub> Max. | 120mm |
| r<sub>as</sub> Max. | 1mm |
| Weight Kg | 0.313 kg |
