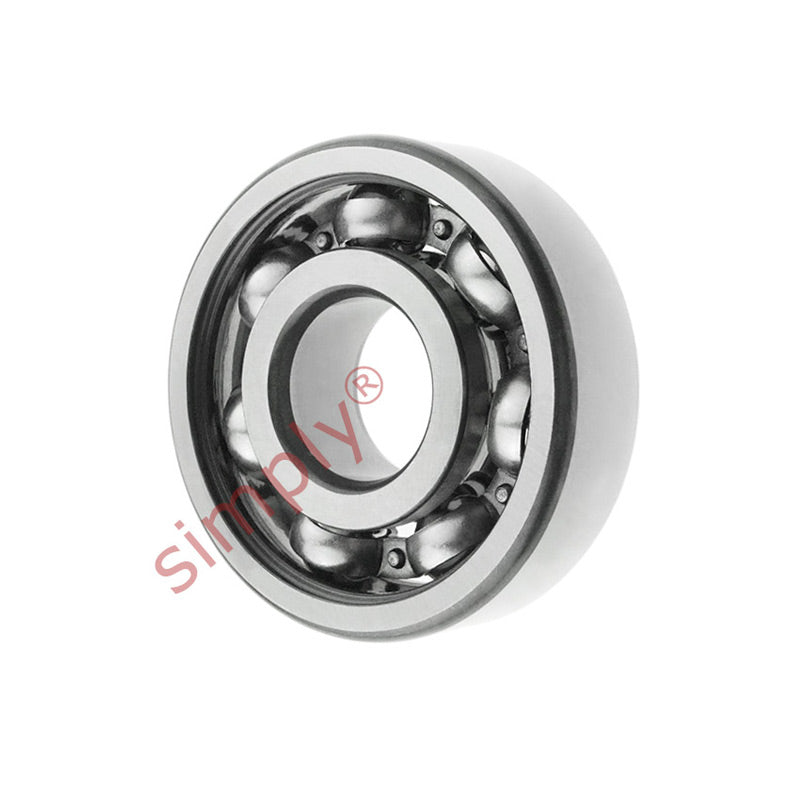

• NTN 6824 Open Type Deep Groove Ball Bearing 120x150x16mm
  • NTN
1 2

SKU: 6824-NTN

NTN 6824 Open Type Deep Groove Ball Bearing 120x150x16mm

NTN 6824 Open Type Deep Groove Ball Bearing 120x150x16mm
$375.00 ex VAT
$375.00 ex VAT
Sale Sold out

Equivalent to: 6824CM 61824CM 61824T 61824 1824S 61824Y

In stock

Price Break
3+ $251.18
5+ $237.07
10+ $234.25
25+ $231.43
49+ $228.61
74+ $225.78
99+ $211.67
199+ $208.85
249+ $206.03
499+ $203.21
999+ $197.56

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
NTN - High Quality
Inside Diameter:
120mm
Outside Diameter:
150mm
Width:
16mm
Seals / Shields:
None
Clearance:
* Standard
Technical
--- Bearing dimensions
d 120mm
D 150mm
B 16mm
r<sub>s</sub> min 1mm
--- Loads angles and speeds
C<sub>r</sub> 32 kN
C<sub>or</sub> 33 kN
C<sub>u</sub> 1.89 kN
f<sub>0</sub> 16 kN
Grease 4000 rpm
Oil 4700 rpm
--- Fitting Dimensions
d<sub>a</sub> Min. 125mm
D<sub>a</sub> Max. 145mm
r<sub>as</sub> Max. 1mm
Weight 0.555 kg
