SKU: 6900-NTN

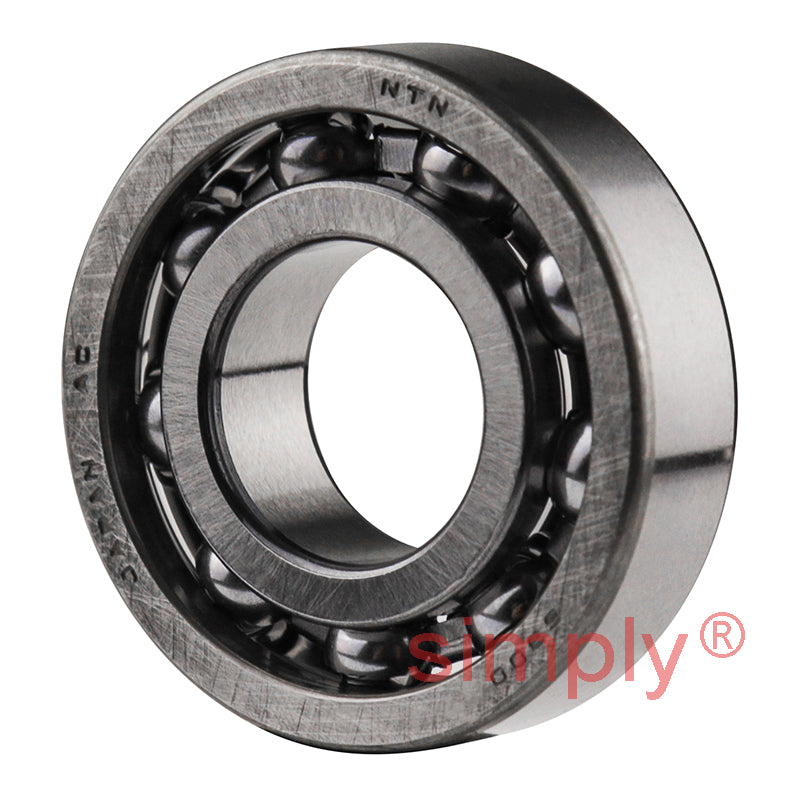

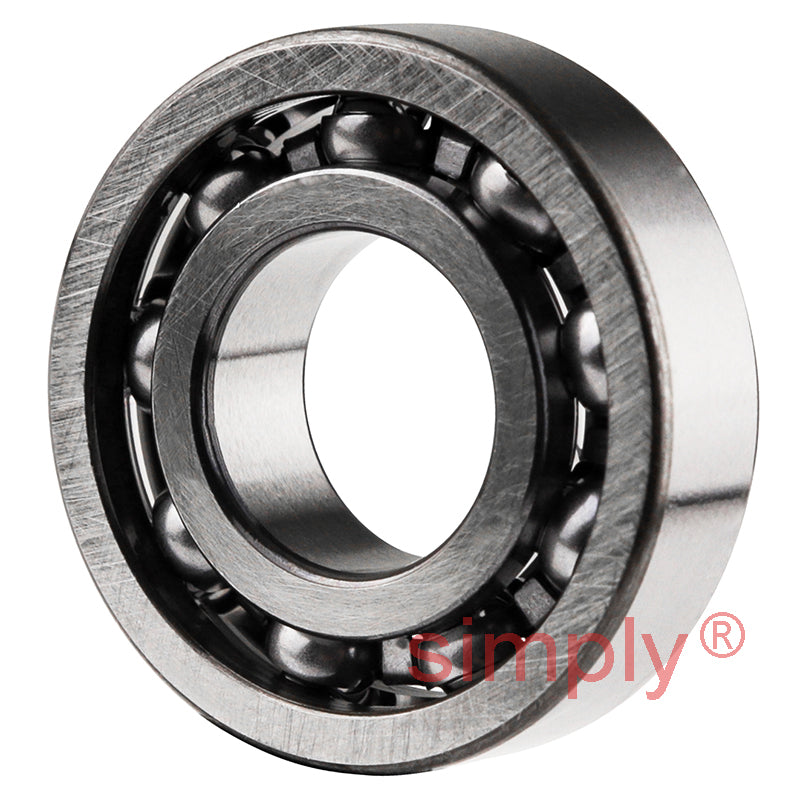

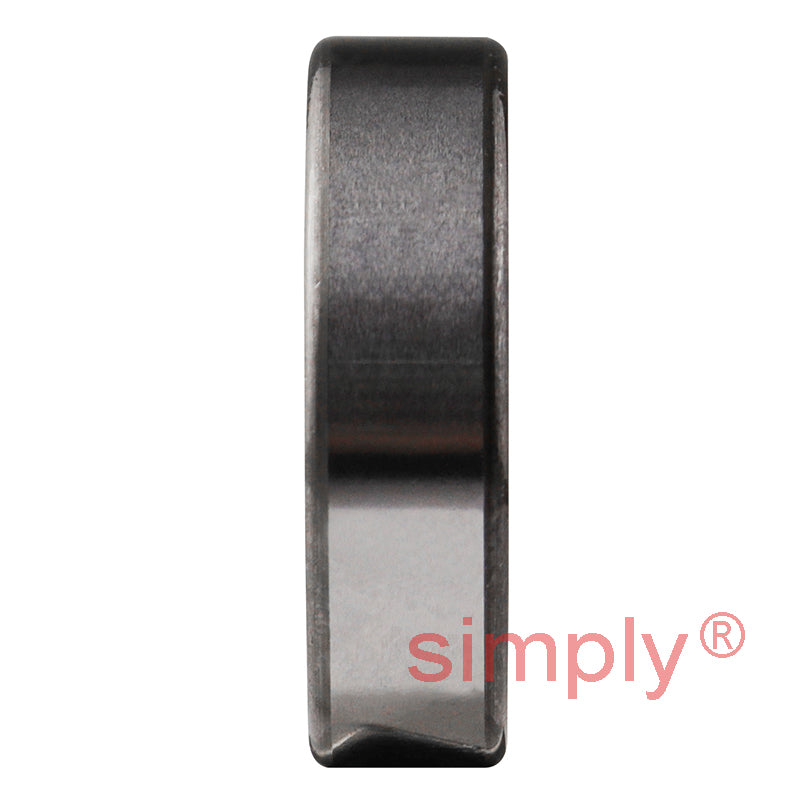

NTN 6900 Open Type Deep Groove Ball Bearing 10x22x6mm

NTN 6900 Open Type Deep Groove Ball Bearing 10x22x6mm
$14.54 ex VAT
$14.54 ex VAT
Sale Sold out

Equivalent to: 6900CM 61900CM 9300K 61900 61900S AY10

In stock

Price Break
3+ $9.74
5+ $9.19
10+ $9.08
25+ $8.97
49+ $8.86
74+ $8.75
99+ $8.21
199+ $8.10
249+ $7.99
499+ $7.88
999+ $7.66

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
NTN - High Quality
Inside Diameter:
10mm
Outside Diameter:
22mm
Width:
6mm
Seals / Shields:
None
Clearance:
* Standard
Technical
--- Bearing dimensions
d 10mm
D 22mm
B 6mm
r<sub>s</sub> min 0.3mm
--- Loads angles and speeds
C<sub>r</sub> 2.99 kN
C<sub>or</sub> 1.27 kN
C<sub>u</sub> 0.099 kN
f<sub>0</sub> 14 kN
Grease 30000 rpm
Oil 36000 rpm
--- Fitting Dimensions
d<sub>a</sub> Min. 12mm
D<sub>a</sub> Max. 20mm
r<sub>as</sub> Max. 0.3mm
Weight 0.009 kg
