SKU: 6901-NTN

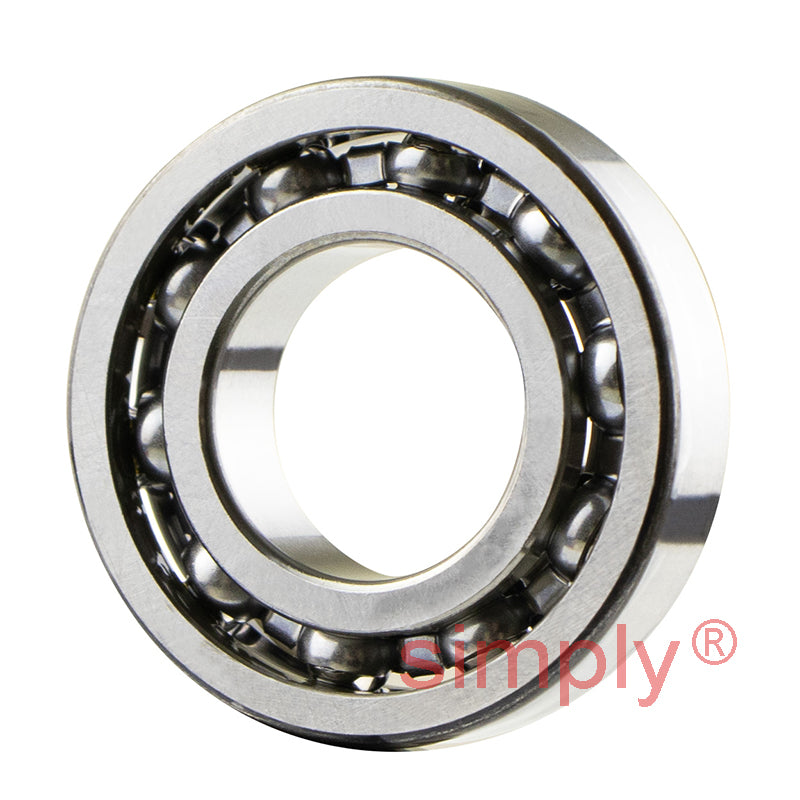

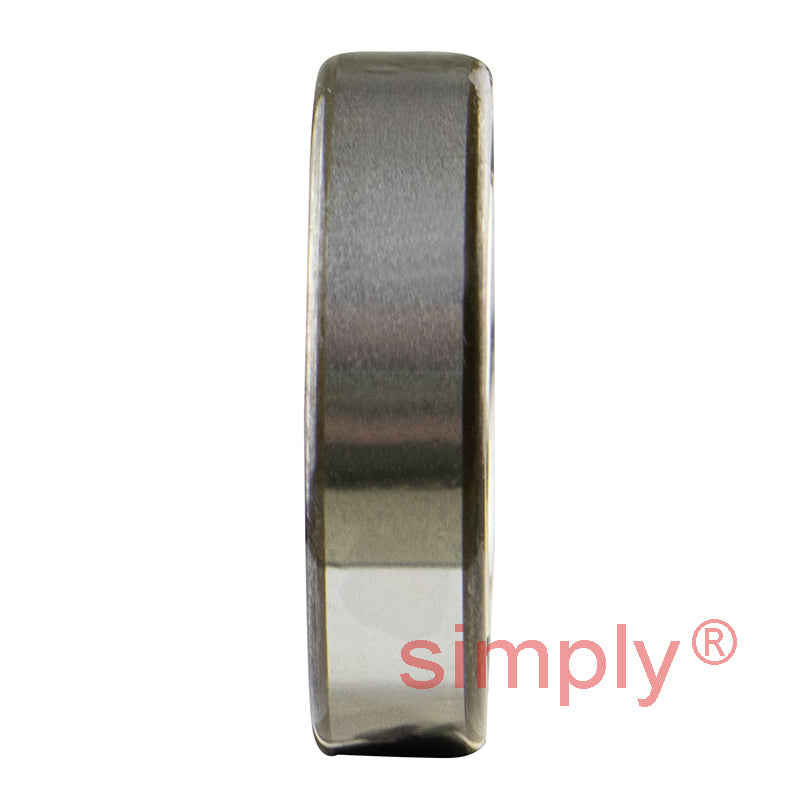

NTN 6901 Open Type Deep Groove Ball Bearing 12x24x6mm

NTN 6901 Open Type Deep Groove Ball Bearing 12x24x6mm
$14.58 ex VAT
$14.58 ex VAT
Sale Sold out

Equivalent to: 6901CM 61901CM 9301K 61901 61901S AY12

In stock

Price Break
3+ $9.76
5+ $9.21
10+ $9.11
25+ $9.00
49+ $8.89
74+ $8.78
99+ $8.23
199+ $8.12
249+ $8.01
499+ $7.90
999+ $7.68

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
NTN - High Quality
Inside Diameter:
12mm
Outside Diameter:
24mm
Width:
6mm
Seals / Shields:
None
Clearance:
* Standard
Technical
--- Bearing dimensions
d 12mm
D 24mm
B 6mm
r<sub>s</sub> min 0.3mm
--- Loads angles and speeds
C<sub>r</sub> 3.2 kN
C<sub>or</sub> 1.46 kN
C<sub>u</sub> 0.115 kN
f<sub>0</sub> 14.5 kN
Grease 27000 rpm
Oil 32000 rpm
--- Fitting Dimensions
d<sub>a</sub> Min. 14mm
D<sub>a</sub> Max. 22mm
r<sub>as</sub> Max. 0.3mm
Weight 0.011 kg
