SKU: 6902-NTN

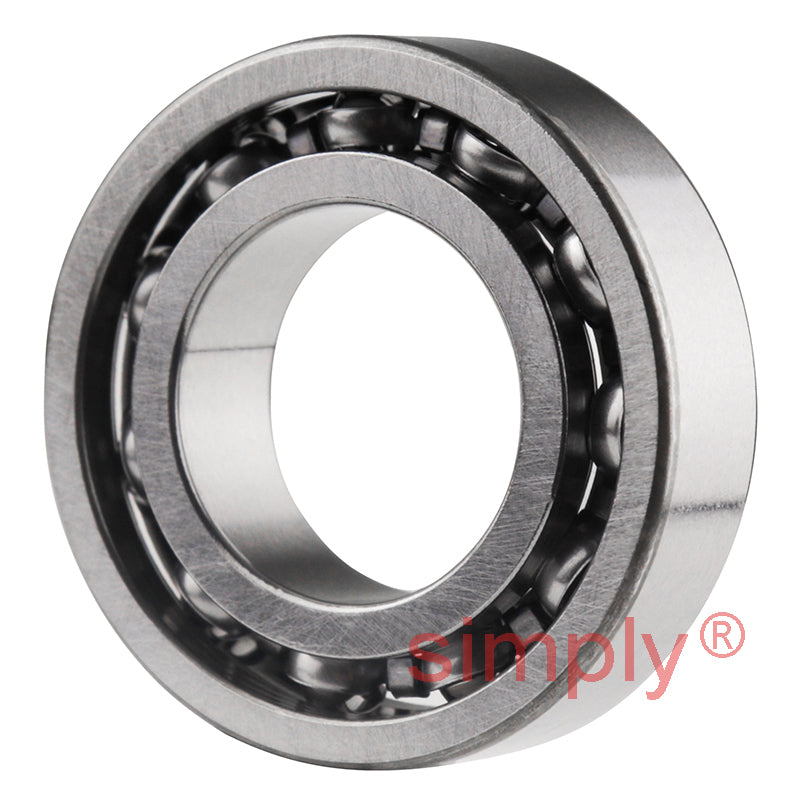

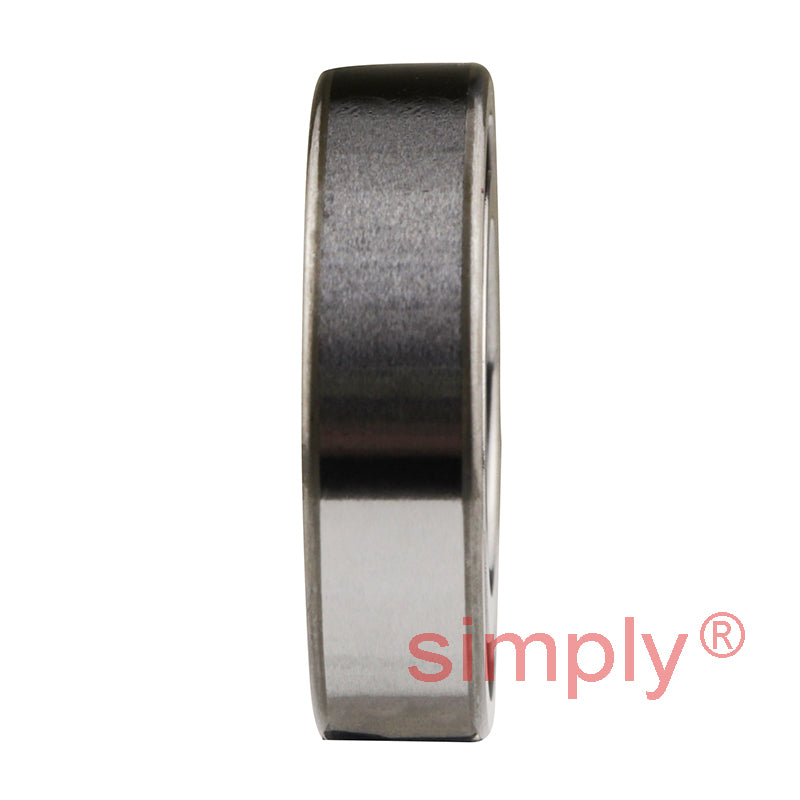

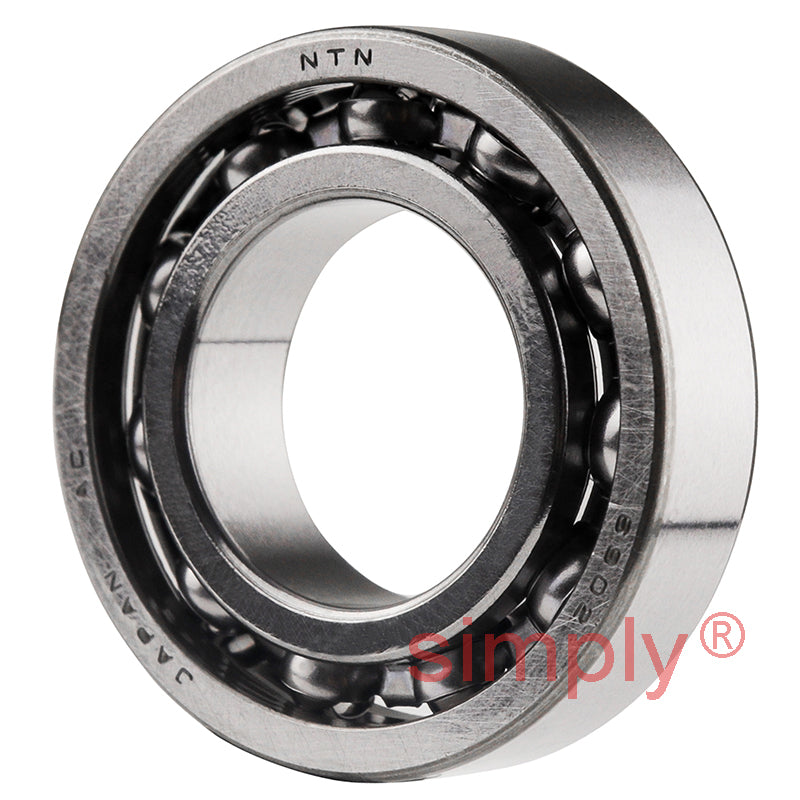

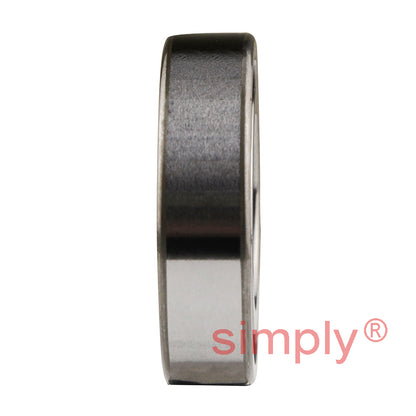

NTN 6902 Open Type Deep Groove Ball Bearing 15x28x7mm

NTN 6902 Open Type Deep Groove Ball Bearing 15x28x7mm
$16.30 ex VAT
$16.30 ex VAT
Sale Sold out

Equivalent to: 6902CM 61902CM 9302K 61902 61902S AY15

In stock

Price Break
3+ $10.92
5+ $10.31
10+ $10.18
25+ $10.06
49+ $9.94
74+ $9.82
99+ $9.20
199+ $9.08
249+ $8.96
499+ $8.83
999+ $8.59

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
NTN - High Quality
Inside Diameter:
15mm
Outside Diameter:
28mm
Width:
7mm
Seals / Shields:
None
Clearance:
* Standard
Technical
--- Bearing dimensions
d 15mm
D 28mm
B 7mm
r<sub>s</sub> min 0.3mm
--- Loads angles and speeds
C<sub>r</sub> 4.05 kN
C<sub>or</sub> 2 kN
C<sub>u</sub> 0.157 kN
f<sub>0</sub> 14.8 kN
Grease 24000 rpm
Oil 28000 rpm
--- Fitting Dimensions
d<sub>a</sub> Min. 17mm
D<sub>a</sub> Max. 26mm
r<sub>as</sub> Max. 0.3mm
Weight 0.016 kg
