SKU: 6903-ZZE/C3-NACHI

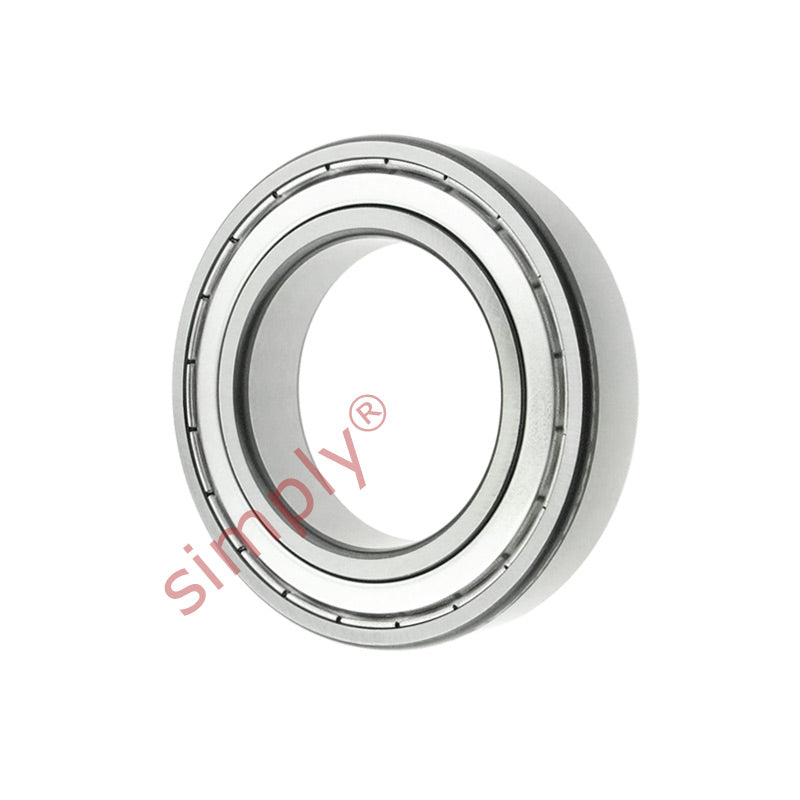

NACHI 6903ZZEC3 Thin Section Metal Shielded Deep Groove Ball Bearing 17x30x7mm
NACHI 6903ZZEC3 Thin Section Metal Shielded Deep Groove Ball Bearing 17x30x7mm
Equivalent to: 6903ZZC3 69032ZC3 6903.2ZC3 6903KDDC3 6903DDC3 69032ZRC3 6903FFC3 61903ZZEC3 61903ZZC3 619032ZC3 61903.2ZC3 61903KDDC3 61903DDC3 619032ZRC3 61903FFC3
Out of stock
Share this product
Description
Description
|
NACHI Metal Shielded Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two steel shields to provide a labyrinth clearance. Benefits: High-running accuracy and high-speed operation. |
- Brand / Quality:
- Nachi - High Quality
- Inside Diameter:
- 17mm
- Outside Diameter:
- 30mm
- Width:
- 7mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- C3
Technical
Technical
| Inside Diameter d | 17mm |
|---|---|
| Outside Diameter D | 30mm |
| Width B | 7mm |
| Min radius r | 0.3mm |
| Dynamic load | 4600 kN |
| Static load | 2550 kN |
| Max speed | 24000 rpm |
| da min | 19mm |
| Da max | 28mm |
| ra max | 0.3mm |
| Weight | 0.018 kg |
