SKU: 6904-NTN

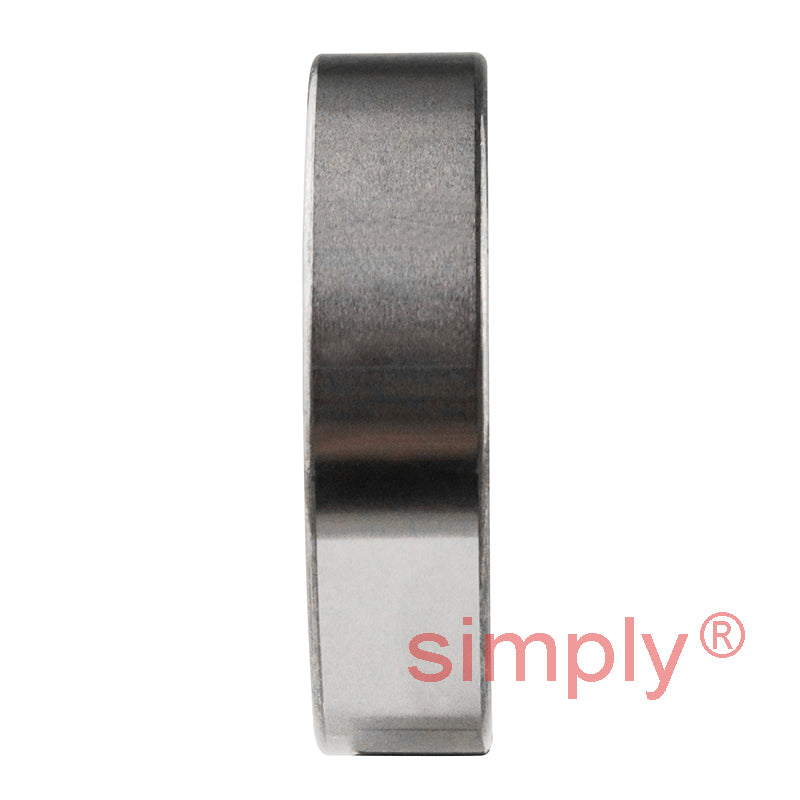

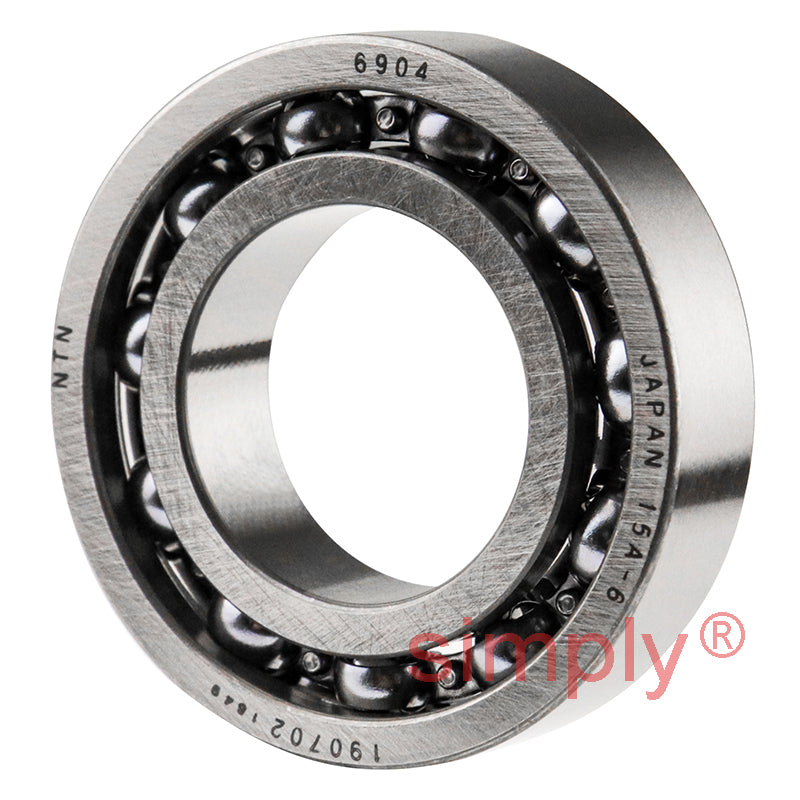

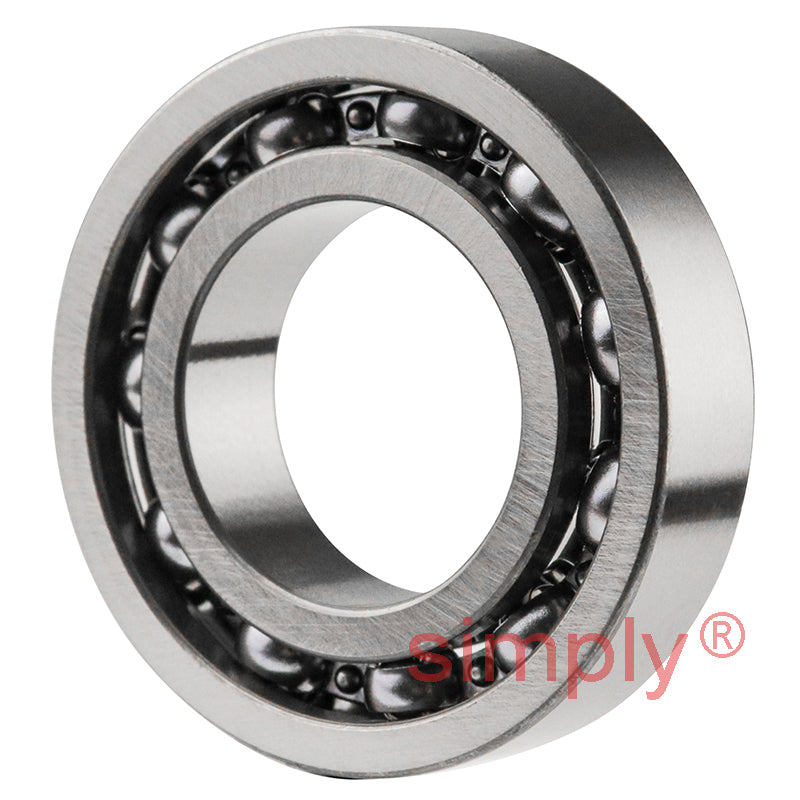

NTN 6904 Open Type Deep Groove Ball Bearing 20x37x9mm

NTN 6904 Open Type Deep Groove Ball Bearing 20x37x9mm
$18.58 ex VAT
$18.58 ex VAT
Sale Sold out

Equivalent to: 6904CM 61904CM 9304K 61904 61904S AY20

In stock

Price Break
3+ $12.44
5+ $11.74
10+ $11.60
25+ $11.46
49+ $11.32
74+ $11.18
99+ $10.49
199+ $10.35
249+ $10.21
499+ $10.07
999+ $9.79

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
NTN - High Quality
Inside Diameter:
20mm
Outside Diameter:
37mm
Width:
9mm
Seals / Shields:
None
Clearance:
* Standard
Technical
--- Bearing dimensions
d 20mm
D 37mm
B 9mm
r<sub>s</sub> min 0.3mm
--- Loads angles and speeds
C<sub>r</sub> 7.05 kN
C<sub>or</sub> 3.7 kN
C<sub>u</sub> 0.288 kN
f<sub>0</sub> 14.7 kN
Grease 19000 rpm
Oil 23000 rpm
--- Fitting Dimensions
d<sub>a</sub> Min. 22mm
D<sub>a</sub> Max. 35mm
r<sub>as</sub> Max. 0.3mm
Weight 0.036 kg
