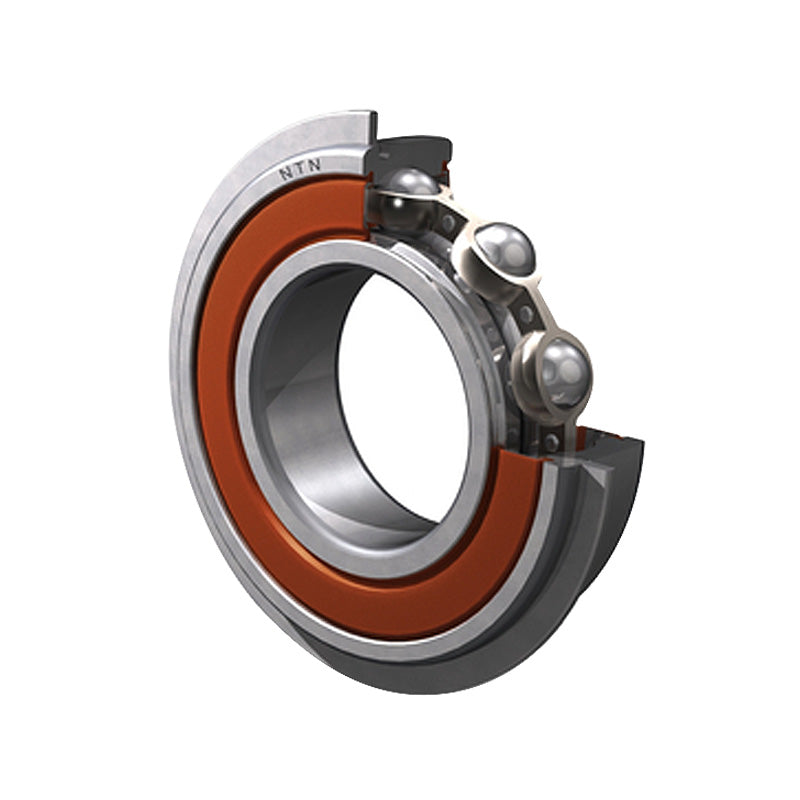

• NTN 6904LLUNR/2AS Contact Rubber Sealed Type Deep Groove Ball Bearing with Snap Ring 20x37x9mm
1 1

SKU: 6904LLUNR/2AS-NTN

NTN 6904LLUNR/2AS Contact Rubber Sealed Type Deep Groove Ball Bearing with Snap Ring 20x37x9mm

NTN 6904LLUNR/2AS Contact Rubber Sealed Type Deep Groove Ball Bearing with Snap Ring 20x37x9mm
$23.60 ex VAT
$23.60 ex VAT
Sale Sold out

Equivalent to: 6904LLUNRCM 61904LLUNRCM 6904LLUNR 61904LLUNR 6904NSENR 6904DUNR 6904RSNR 6904RSHNR 6904PNR 6904RSRNR 6904LUNR 69042NSENR 6904DDUNR 69042RSNR 6904-2RSNR 69042RS1NR 69042RSHNR 6904PPNR 69042RSRNR 6904LLUNR 6904RS2NR 69042RS2NR 69042RSLNR 6904LFSNR 6904EENR

In stock

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
MHVCVY8FIO
Note: These bearings are supplied pre-filled with grease, "/2AS" refers to Shell Alvania Grease S2
Brand / Quality:
NTN - High Quality
Inside Diameter:
20mm
Outside Diameter:
37mm
Width:
9mm
Seals / Shields:
Rubber Sealed
Clearance:
* Standard
Snap Ring:
Snap Ring
Technical
--- Bearing dimensions
d 20mm
D 37mm
B 9mm
r<sub>s</sub> min 0.3mm
--- Loads angles and speeds
rNS Min. 0.3 kN
C<sub>r</sub> 7.05 kN
C<sub>or</sub> 3.7 kN
C<sub>u</sub> 0.288 kN
f<sub>0</sub> 14.7
--- Fitting Dimensions
Speed 12000rpm
D<sub>1</sub> Max. 35.7mm
a Max. 1.7mm
b Min. 0.95mm
r<sub>o</sub> Max. 0.25mm
