SKU: 6905-NTN

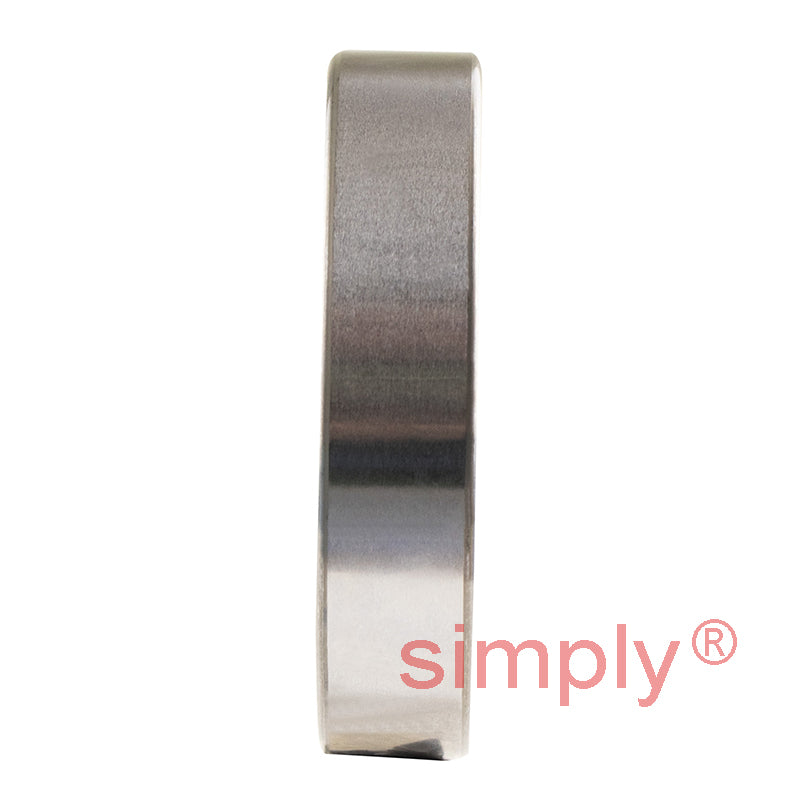

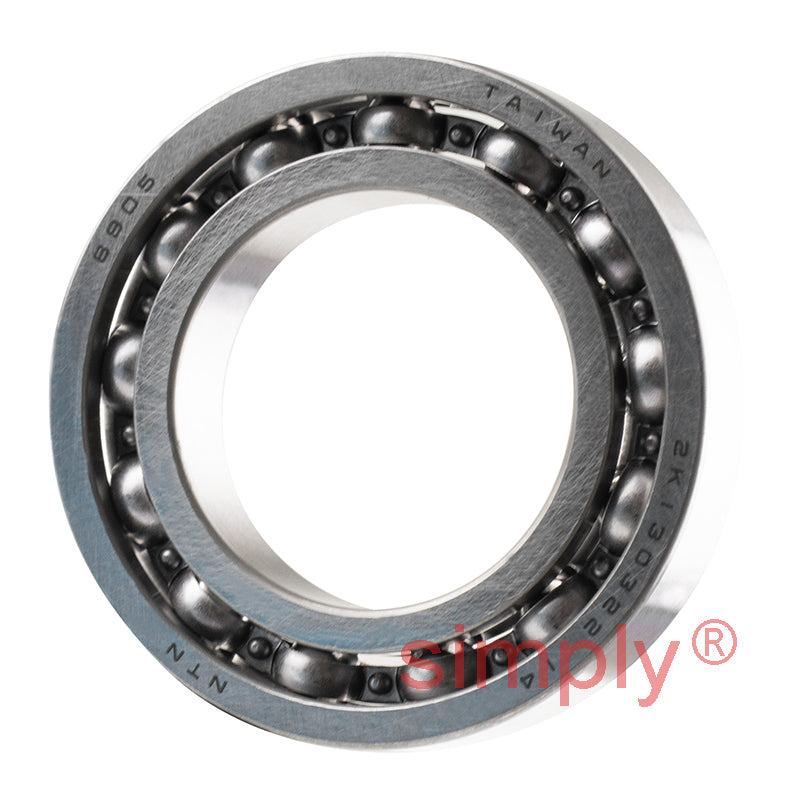

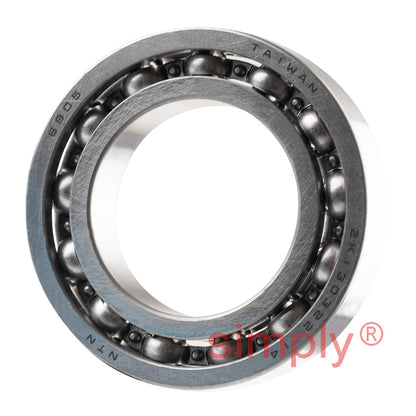

NTN 6905 Open Type Deep Groove Ball Bearing 25x42x9mm

NTN 6905 Open Type Deep Groove Ball Bearing 25x42x9mm
$20.81 ex VAT
$20.81 ex VAT
Sale Sold out

Equivalent to: 6905CM 61905CM 9305K 61905 61905S AY25

In stock

Price Break
3+ $13.94
5+ $13.15
10+ $13.00
25+ $12.84
49+ $12.68
74+ $12.53
99+ $11.75
199+ $11.59
249+ $11.43
499+ $11.28
999+ $10.96

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
NTN - High Quality
Inside Diameter:
25mm
Outside Diameter:
42mm
Width:
9mm
Seals / Shields:
None
Clearance:
* Standard
Technical
--- Bearing dimensions
d 25mm
D 42mm
B 9mm
r<sub>s</sub> min 0.3mm
--- Loads angles and speeds
C<sub>r</sub> 7.8 kN
C<sub>or</sub> 4.55 kN
C<sub>u</sub> 0.345 kN
f<sub>0</sub> 15.4 kN
Grease 16000 rpm
Oil 19000 rpm
--- Fitting Dimensions
d<sub>a</sub> Min. 27mm
D<sub>a</sub> Max. 40mm
r<sub>as</sub> Max. 0.3mm
Weight 0.042 kg
