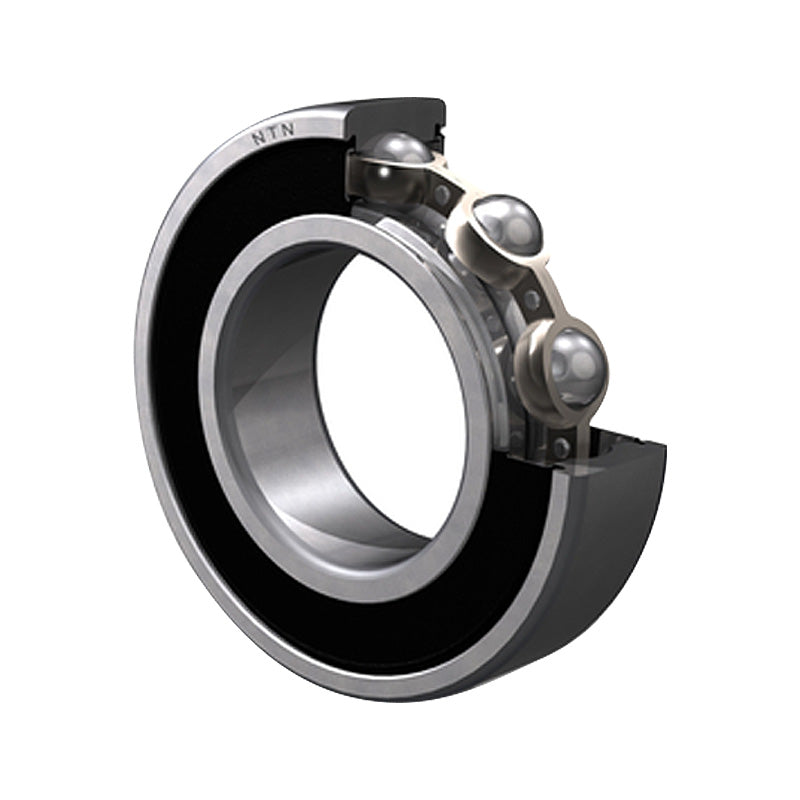

• NTN 6906LLBC3/5K Non-Contact Deep Groove Ball Bearing with Low Friction Seals 30x47x9mm
1 1

SKU: 6906LLBC3/5K-NTN

NTN 6906LLBC3/5K Non-Contact Deep Groove Ball Bearing with Low Friction Seals 30x47x9mm

NTN 6906LLBC3/5K Non-Contact Deep Groove Ball Bearing with Low Friction Seals 30x47x9mm
$38.77 ex VAT
$38.77 ex VAT
Sale Sold out

Equivalent to: 61906LLBC3 69062NKEC3 6906VVC3 69062RSLC3 69062RZC3

In stock

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
DESC_NSDGB
Note: These bearings are supplied pre-filled with grease, "/5k" refers to the grease: Multemp SRL (-40 deg C to +150 deg C)
Brand / Quality:
NTN - High Quality
Inside Diameter:
30mm
Outside Diameter:
47mm
Width:
9mm
Seals / Shields:
Low Friction
Clearance:
C3
Technical
--- Bearing dimensions
d 30mm
D 47mm
B 9mm
r<sub>s</sub> min 0.3mm
--- Loads angles and speeds
C<sub>r</sub> 8 kN
C<sub>or</sub> 5 kN
C<sub>u</sub> 0.365 kN
f<sub>0</sub> 15.8 kN
Grease 14000 rpm
Oil 17000 rpm
--- Fitting Dimensions
d<sub>a</sub> Min. 32mm
d<sub>a</sub> Max. 34mm
D<sub>a</sub> Max. 45mm
r<sub>as</sub> Max. 0.3mm
Weight 0.048 kg
