SKU: 6907-NTN

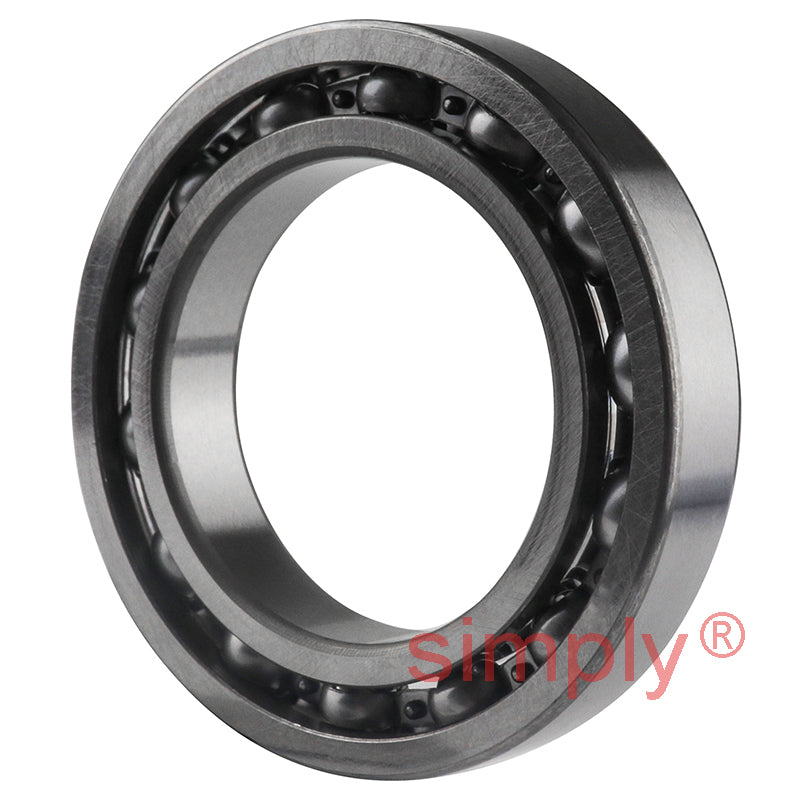

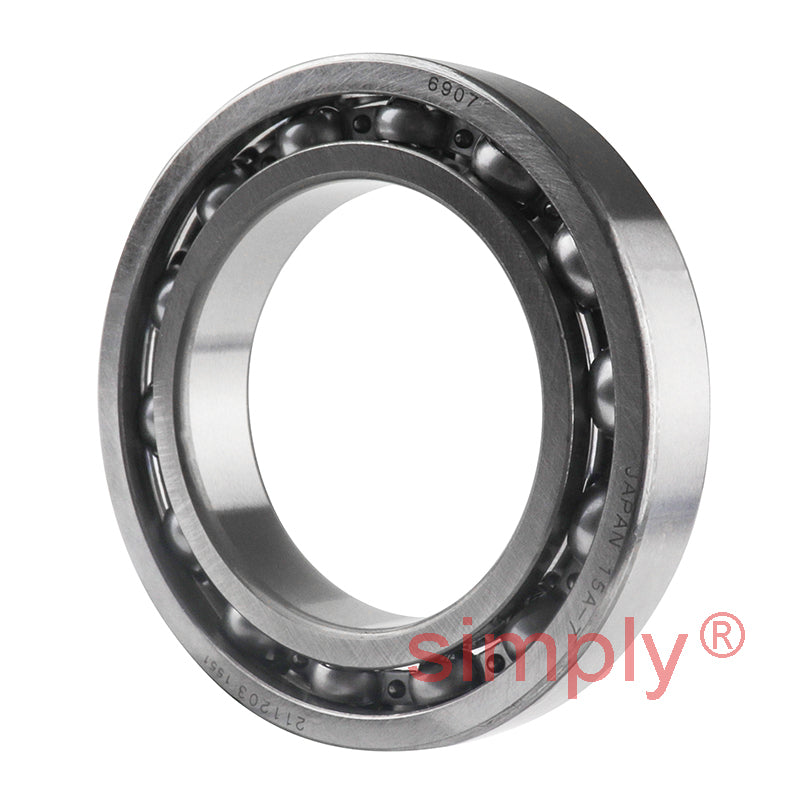

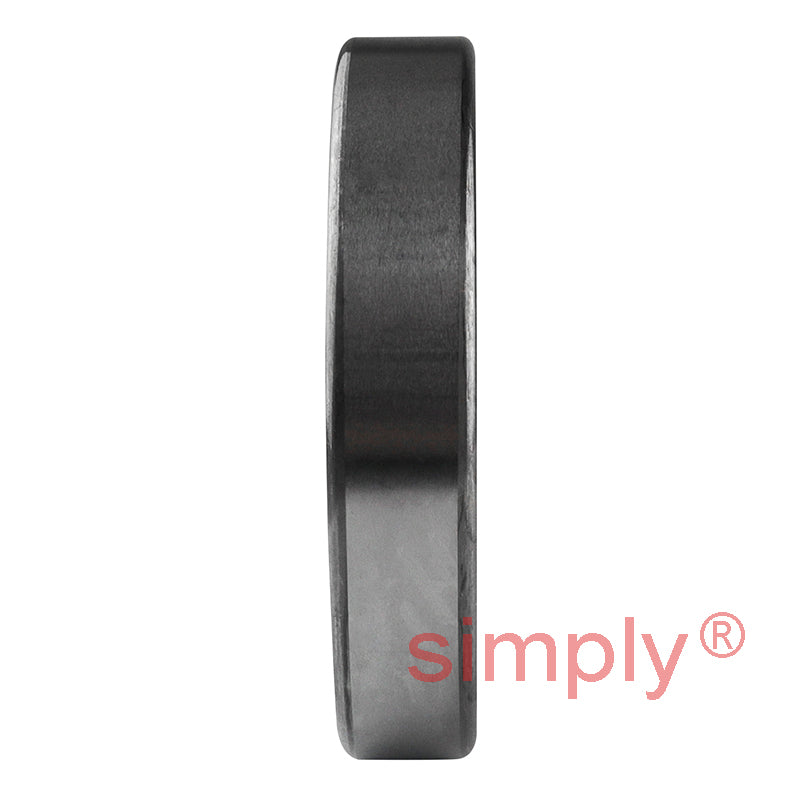

NTN 6907 Open Type Deep Groove Ball Bearing 35x55x10mm

NTN 6907 Open Type Deep Groove Ball Bearing 35x55x10mm
$72.44 ex VAT
$72.44 ex VAT
Sale Sold out

Equivalent to: 6907CM 61907CM 9307K 61907 61907S AY35

In stock

Price Break
3+ $48.52
5+ $45.80
10+ $45.25
25+ $44.71
49+ $44.16
74+ $43.62
99+ $40.89
199+ $40.34
249+ $39.80
499+ $39.25
999+ $38.16

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
NTN - High Quality
Inside Diameter:
35mm
Outside Diameter:
55mm
Width:
10mm
Seals / Shields:
None
Clearance:
* Standard
Technical
--- Bearing dimensions
d 35mm
D 55mm
B 10mm
r<sub>s</sub> min 0.6mm
--- Loads angles and speeds
C<sub>r</sub> 10.6 kN
C<sub>or</sub> 6.85 kN
C<sub>u</sub> 0.495 kN
f<sub>0</sub> 15.8 kN
Grease 12000 rpm
Oil 15000 rpm
--- Fitting Dimensions
d<sub>a</sub> Min. 39mm
D<sub>a</sub> Max. 51mm
r<sub>as</sub> Max. 0.6mm
Weight 0.074 kg
