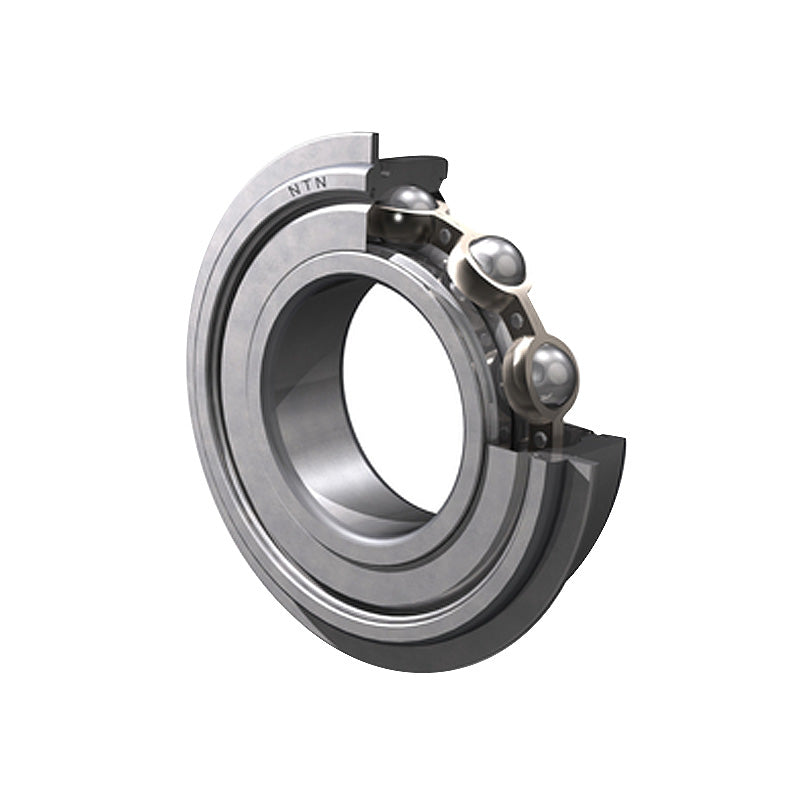

• NTN 6907ZZNR/2AS Metal Shielded Type Deep Groove Ball Bearing with Snap Ring 35x55x10mm
1 1

SKU: 6907ZZNR/2AS-NTN

NTN 6907ZZNR/2AS Metal Shielded Type Deep Groove Ball Bearing with Snap Ring 35x55x10mm

NTN 6907ZZNR/2AS Metal Shielded Type Deep Groove Ball Bearing with Snap Ring 35x55x10mm
$45.00 ex VAT
$45.00 ex VAT
Sale Sold out

Equivalent to: 6907ZZNRCM 61907ZZNRCM 6907ZZNR 61907ZZNR 6907ZZNR 69072ZNR 6907ZZNR 69072ZRNR 6907ZZENR 6907FFNR 6907DDNR 6907DDCNR 6907KDDCNR EL352ZNR EL35ZZNR 9107KDDG 4773L07 107KSFFG

In stock

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
HEAD_SKZN
Note: These bearings are supplied pre-filled with grease, "/2AS" refers to Shell Alvania Grease S2
Brand / Quality:
NTN - High Quality
Inside Diameter:
35mm
Outside Diameter:
55mm
Width:
10mm
Seals / Shields:
Metal Shielded
Clearance:
* Standard
Snap Ring:
Snap Ring
Technical
--- Bearing dimensions
d 35mm
D 55mm
B 10mm
r<sub>s</sub> min 0.6mm
--- Loads angles and speeds
rNS Min. 0.5 kN
C<sub>r</sub> 10.6 kN
C<sub>or</sub> 6.85 kN
C<sub>u</sub> 0.495 kN
f<sub>0</sub> 15.8 rpm
Grease 12000 rpm
--- Fitting Dimensions
Oil 15000 rpm
D<sub>1</sub> Max. 53.7mm
a Max. 1.7mm
b Min. 0.95mm
r<sub>o</sub> Max. 0.25mm
