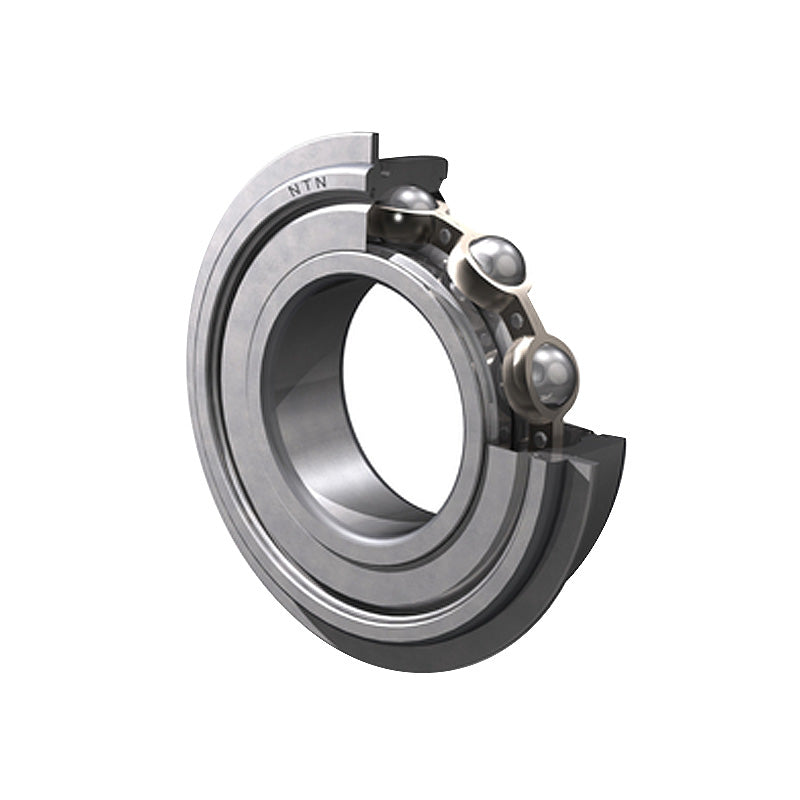

• NTN 6908ZZNR/2AS Metal Shielded Type Deep Groove Ball Bearing with Snap Ring 40x62x12mm
1 1

SKU: 6908ZZNR/2AS-NTN

NTN 6908ZZNR/2AS Metal Shielded Type Deep Groove Ball Bearing with Snap Ring 40x62x12mm

NTN 6908ZZNR/2AS Metal Shielded Type Deep Groove Ball Bearing with Snap Ring 40x62x12mm
$50.13 ex VAT
$50.13 ex VAT
Sale Sold out

Equivalent to: 6908ZZNRCM 61908ZZNRCM 6908ZZNR 61908ZZNR 6908ZZNR 69082ZNR 6908ZZNR 69082ZRNR 6908ZZENR 6908FFNR 6908DDNR 6908DDCNR 6908KDDCNR EL402ZNR EL40ZZNR 9108KDDG 4773L08 108KSFFG

In stock

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
HEAD_SKZN
Note: These bearings are supplied pre-filled with grease, "/2AS" refers to Shell Alvania Grease S2
Brand / Quality:
NTN - High Quality
Inside Diameter:
40mm
Outside Diameter:
62mm
Width:
12mm
Seals / Shields:
Metal Shielded
Clearance:
* Standard
Snap Ring:
Snap Ring
Technical
--- Bearing dimensions
d 40mm
D 62mm
B 12mm
r<sub>s</sub> min 0.6mm
--- Loads angles and speeds
rNS Min. 0.5 kN
C<sub>r</sub> 13.5 kN
C<sub>or</sub> 8.9 kN
C<sub>u</sub> 0.645 kN
f<sub>0</sub> 15.8 rpm
Grease 11000 rpm
--- Fitting Dimensions
Oil 13000 rpm
D<sub>1</sub> Max. 60.7mm
a Max. 1.7mm
b Min. 0.95mm
r<sub>o</sub> Max. 0.25mm
