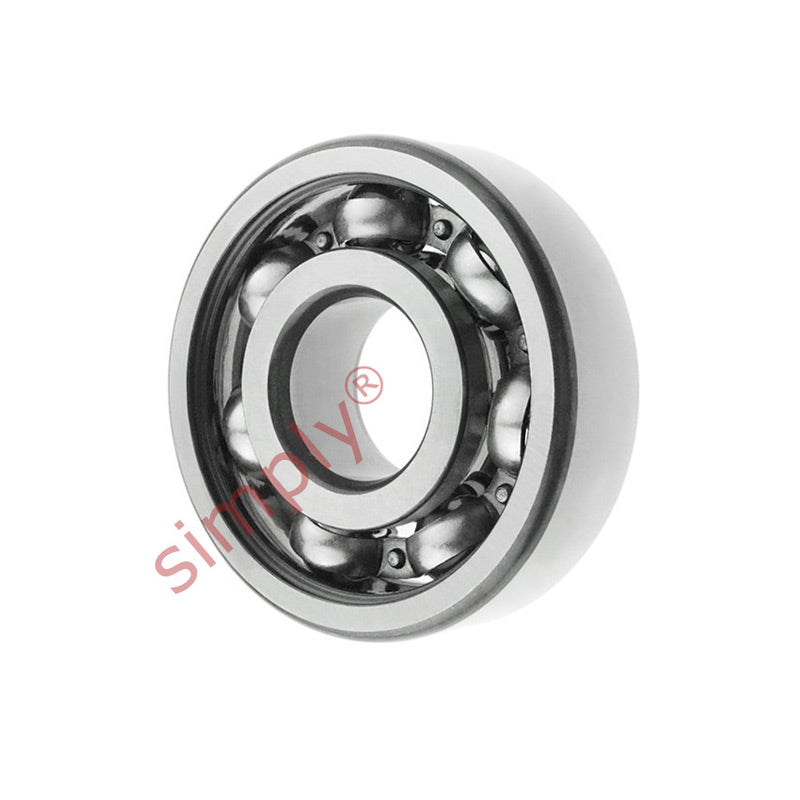

• NTN 6909 Open Type Deep Groove Ball Bearing 45x68x12mm
  • NTN
1 2

SKU: 6909-NTN

NTN 6909 Open Type Deep Groove Ball Bearing 45x68x12mm

NTN 6909 Open Type Deep Groove Ball Bearing 45x68x12mm
$89.63 ex VAT
$89.63 ex VAT
Sale Sold out

Equivalent to: 6909CM 61909CM 9309K 61909 61909S AY45

In stock

Price Break
3+ $60.04
5+ $56.67
10+ $55.99
25+ $55.32
49+ $54.64
74+ $53.97
99+ $50.60
199+ $49.92
249+ $49.25
499+ $48.57
999+ $47.22

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
NTN - High Quality
Inside Diameter:
45mm
Outside Diameter:
68mm
Width:
12mm
Seals / Shields:
None
Clearance:
* Standard
Technical
--- Bearing dimensions
d 45mm
D 68mm
B 12mm
r<sub>s</sub> min 0.6mm
--- Loads angles and speeds
C<sub>r</sub> 14.5 kN
C<sub>or</sub> 10.4 kN
C<sub>u</sub> 0.73 kN
f<sub>0</sub> 16.1 kN
Grease 9800 rpm
Oil 12000 rpm
--- Fitting Dimensions
d<sub>a</sub> Min. 49mm
D<sub>a</sub> Max. 64mm
r<sub>as</sub> Max. 0.6mm
Weight 0.128 kg
