SKU: 6914-ZZ/C3-NACHI

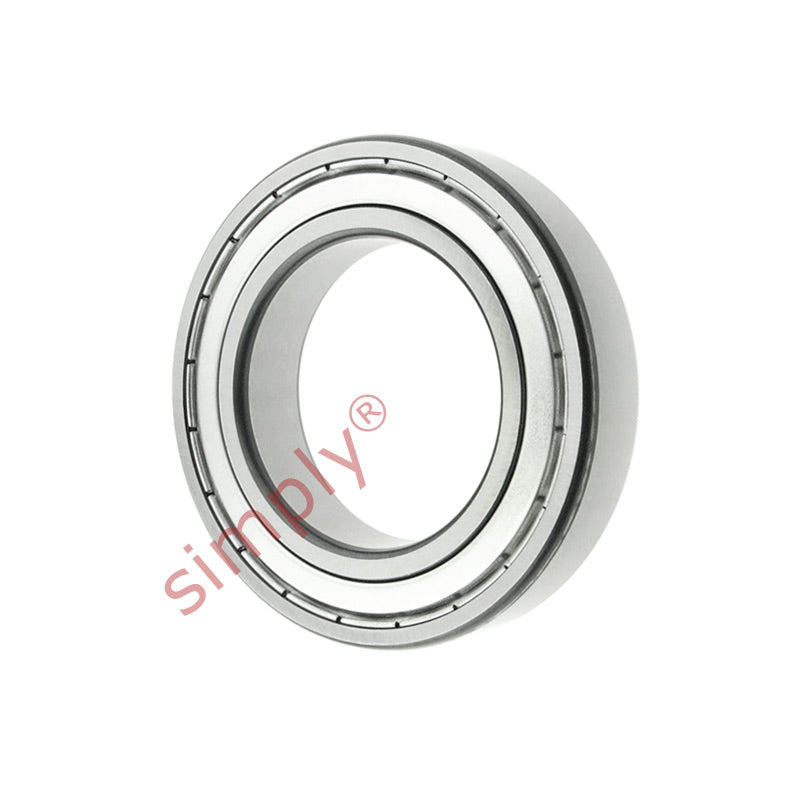

NACHI 6914ZZC3 Thin Section Metal Shielded Deep Groove Ball Bearing 70x100x16mm
NACHI 6914ZZC3 Thin Section Metal Shielded Deep Groove Ball Bearing 70x100x16mm
Equivalent to: 6914ZZEC3 69142ZC3 6914.2ZC3 6914KDDC3 6914DDC3 69142ZRC3 6914FFC3 61914ZZEC3 61914ZZC3 619142ZC3 61914.2ZC3 61914KDDC3 61914DDC3 619142ZRC3 61914FFC3
Out of stock
Share this product
Description
Description
|
NACHI Metal Shielded Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two steel shields to provide a labyrinth clearance. Benefits: High-running accuracy and high-speed operation. |
- Brand / Quality:
- Nachi - High Quality
- Inside Diameter:
- 70mm
- Outside Diameter:
- 100mm
- Width:
- 16mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- C3
Technical
Technical
| Inside Diameter d | 70mm |
|---|---|
| Outside Diameter D | 100mm |
| Width B | 16mm |
| Min radius r | 1mm |
| Dynamic load | 23700 kN |
| Static load | 21100 kN |
| Max speed | 6500 rpm |
| da min | 75mm |
| Da max | 95mm |
| ra max | 1mm |
| Weight | 0.327 kg |
