SKU: 695-MB

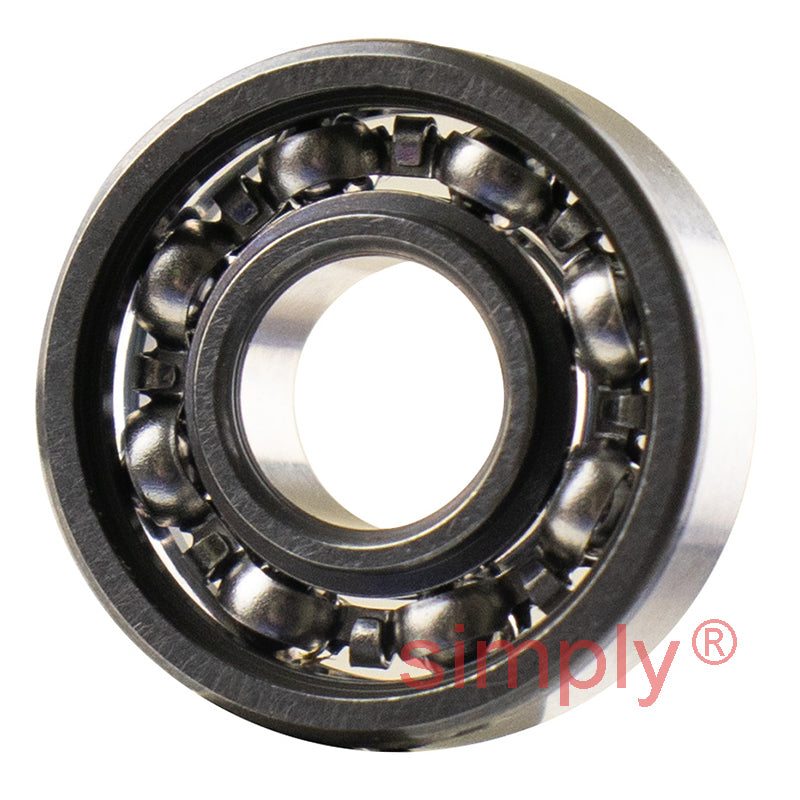

Major Branded 695 Open Type Deep Groove Ball Bearing 5x13x4mm
Major Branded 695 Open Type Deep Groove Ball Bearing 5x13x4mm
Regular price
$4.82
ex VAT
Regular price
Sale price
$4.82
ex VAT
In stock
Price Break
10+
$3.23
19+
$3.05
29+
$3.01
39+
$2.97
49+
$2.94
74+
$2.90
99+
$2.72
199+
$2.68
249+
$2.65
499+
$2.61
999+
$2.54
Quantity
Couldn't load pickup availability
Description
Description
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available.
Benefits: Used widely in transmissions etc, can be used in oil or greased, cost-effective solution.
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 5mm
- Outside Diameter:
- 13mm
- Width:
- 4mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 5mm |
|---|---|
| D | 13mm |
| B | 4mm |
| r min | 0.2mm |
| Dynamic load C | 1.078 kN |
| Static load Co | 0.4116 kN |
| Max speed | 48000 rpm |
| Mass | 0.01 kg |
