SKU: 699-ZZ-EU

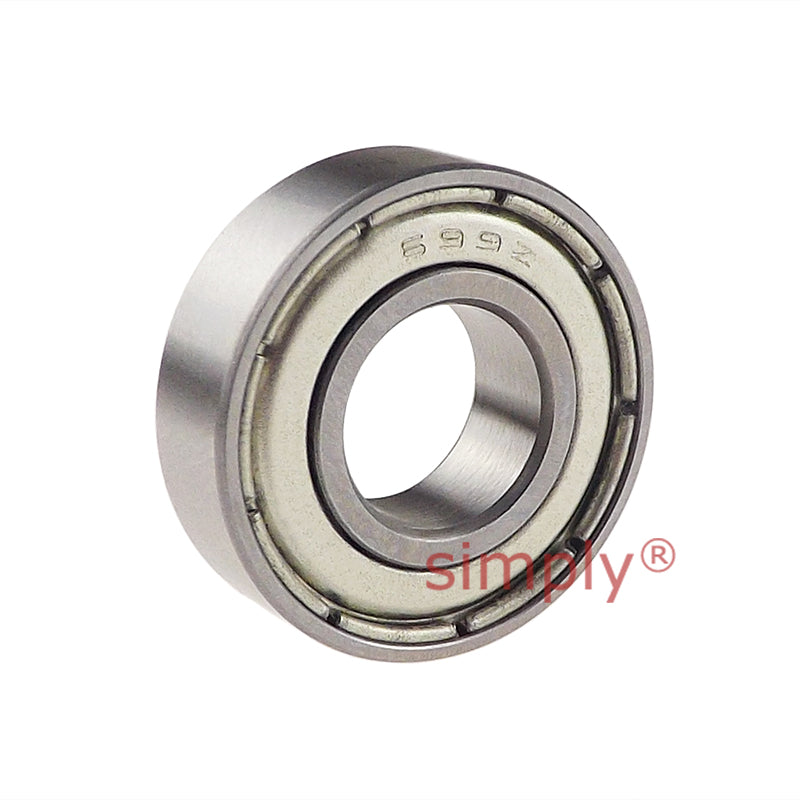

6992Z Budget Metal Shielded Deep Groove Ball Bearing 9x20x6mm
Equivalent to: 699ZZE 6992Z 699.2Z 699KDD 699DD 6992ZR 699FF 699ZZE 6992ZR
In stock
Price Break
Couldn't load pickup availability
Share this product
Description
|
Budget Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 9mm
- Outside Diameter:
- 20mm
- Width:
- 6mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
Technical
| d | 9mm |
|---|---|
| D | 20mm |
| B | 6mm |
| r min | 0.3mm |
| Dynamic load Cr | 2.467 kN |
| Static load Cor | 1.081 kN |
| Speed in grease | 34000 rpm |
| Speed in oil | 40000 rpm |
