SKU: 7006CTRDUHP3-NSK

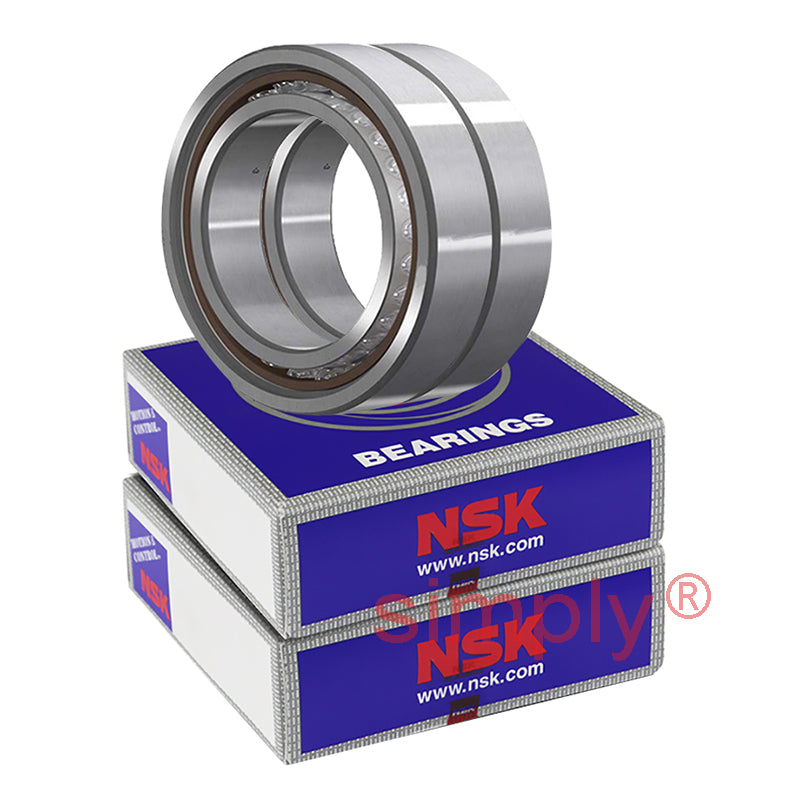

NSK 7006CTRDUHP3 Super Precision Angular Contact Spindle Bearing 30x55x13mm (Set of 2)

Name: NSK 7006CTRDUHP3 Super Precision Angular Contact Spindle Bearing 30x55x13mm (Set of 2)
Brand: NSK
SKU: 7006CTRDUHP3-NSK
Price: 344.58 USD
Availability: InStock

$344.58 ex VAT

Sale Sold out

In stock

Price Break

3+ $230.82

5+ $217.85

10+ $215.25

25+ $212.66

49+ $210.07

74+ $207.47

99+ $194.51

199+ $191.91

249+ $189.32

499+ $186.73

999+ $181.54

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: NSK - High Quality
Inside Diameter:: 30mm
Outside Diameter:: 55mm
Width:: 13mm
Seals / Shields:: None
Style:: Universal Matched Pair of Bearings
Contact Angle:: 15 Degree contact angle
Bearing Preload:: Heavy preload

Technical

---	Bearing dimensions
d	30mm
D	55mm
B	13mm
r<sub>min</sub>	1mm
r1<sub>min</sub>	0.6mm
---	Loads angles and speeds
C<sub>r</sub>	15.9Kn
C<sub>or</sub>	10.3kN
Axial load Kn	6.85 kN
Contact angle	15 degrees
Factor f<sub>o</sub>	14.9
Effective diameter	12.2mm
Max speed in grease	27100 rpm
Max speed in oil	41200 rpm
---	Fitting dimensions
d<sub>a min</sub>	36mm
D<sub>a max</sub>	49mm
D<sub>b max</sub>	50mm
r<sub>a max</sub>	1mm
r<sub>b max</sub>	0.5mm
Weight	0.228kg
