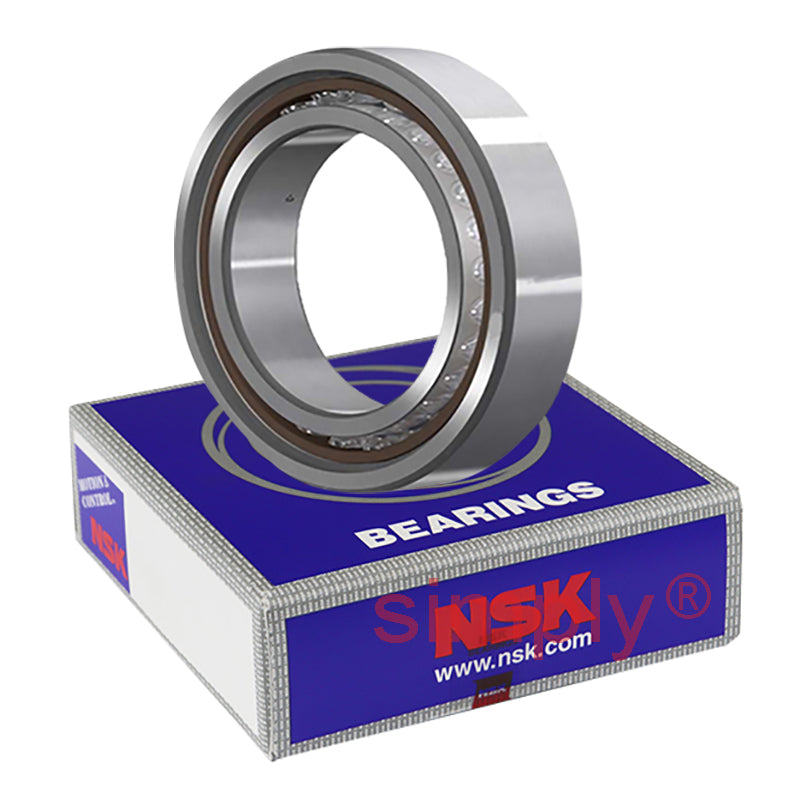

• NSK 7007A5TRV1VSUMP3 Super Precision Sealed Angular Contact Spindle Bearing 35x62x14mm
  • NSK
1 2

SKU: 7007A5TRV1VSUMP3-NSK

NSK 7007A5TRV1VSUMP3 Super Precision Sealed Angular Contact Spindle Bearing 35x62x14mm

NSK 7007A5TRV1VSUMP3 Super Precision Sealed Angular Contact Spindle Bearing 35x62x14mm
$210.47 ex VAT
$210.47 ex VAT
Sale Sold out

In stock

Price Break
3+ $138.21
5+ $130.45
10+ $128.89
25+ $127.34
49+ $125.79
74+ $124.24
99+ $116.47
199+ $114.92
249+ $113.37
499+ $111.81
999+ $108.71

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
NSK - High Quality
Inside Diameter:
35mm
Outside Diameter:
62mm
Width:
14mm
Seals / Shields:
Rubber Sealed
Style:
Single Universal Matchable Bearing
Contact Angle:
25 Degree contact angle
Bearing Preload:
Medium preload
Technical
--- Bearing dimensions
d 35mm
D 62mm
B 14mm
r<sub>min</sub> 1mm
r1<sub>min</sub> 0.6mm
--- Loads angles and speeds
C<sub>r</sub> 19.1Kn
C<sub>or</sub> 13kN
Axial load Kn 11.4 kN
Contact angle 25 degrees
Factor f<sub>o</sub> -
Effective diameter 18.3mm
Max speed in grease 20700 rpm
Max speed in oil 31000 rpm
--- Fitting dimensions
d<sub>a min</sub> 41mm
D<sub>a max</sub> 56mm
D<sub>b max</sub> 57mm
r<sub>a max</sub> 1mm
r<sub>b max</sub> 0.5mm
Weight 0.151kg
