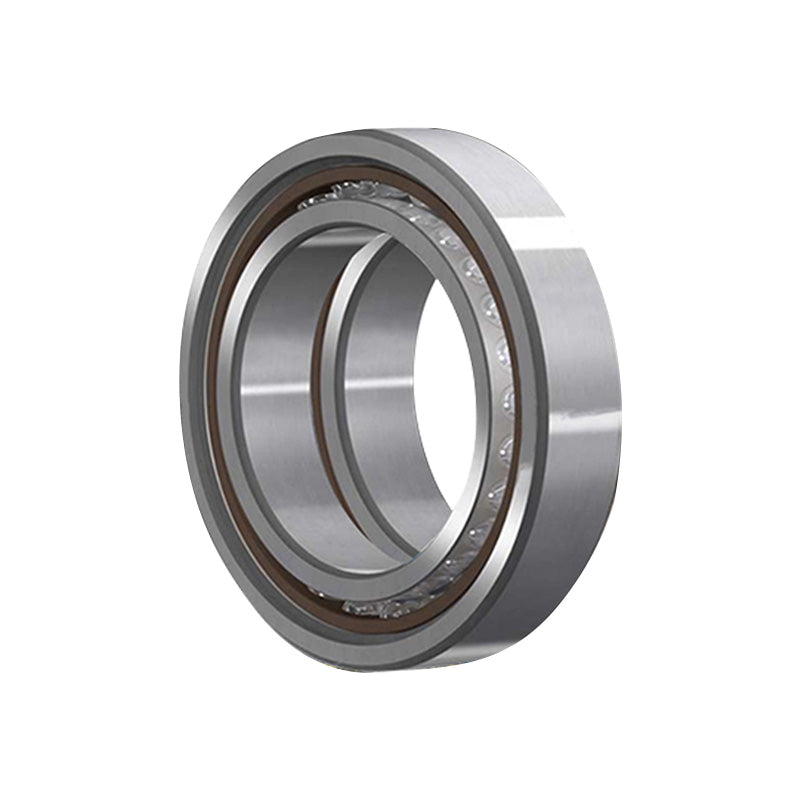

• RHP 7007CTRSULP3 Super Precision Angular Contact Spindle Bearing 35x62x14mm
1 1

SKU: 7007CTRSULP3-RHP

RHP 7007CTRSULP3 Super Precision Angular Contact Spindle Bearing 35x62x14mm

RHP 7007CTRSULP3 Super Precision Angular Contact Spindle Bearing 35x62x14mm
$162.22 ex VAT
$162.22 ex VAT
Sale Sold out

In stock

Price Break
3+ $108.66
5+ $102.56
10+ $101.34
25+ $100.12
49+ $98.90
74+ $97.68
99+ $91.57
199+ $90.35
249+ $89.13
499+ $87.91
999+ $85.47

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
RHP - High Quality
Inside Diameter:
35mm
Outside Diameter:
62mm
Width:
14mm
Seals / Shields:
None
Style:
Single Universal Matchable Bearing
Contact Angle:
15 Degree contact angle
Bearing Preload:
Light preload
Technical
--- Bearing dimensions
d 35mm
D 62mm
B 14mm
r<sub>min</sub> 1mm
r1<sub>min</sub> 0.6mm
--- Loads angles and speeds
C<sub>r</sub> 20.1Kn
C<sub>or</sub> 13.7kN
Axial load Kn 9.35 kN
Contact angle 15 degrees
Factor f<sub>o</sub> 15
Effective diameter 13.5mm
Max speed in grease 23800 rpm
Max speed in oil 36100 rpm
--- Fitting dimensions
d<sub>a min</sub> 41mm
D<sub>a max</sub> 56mm
D<sub>b max</sub> 57mm
r<sub>a max</sub> 1mm
r<sub>b max</sub> 0.5mm
Weight 0.151kg
