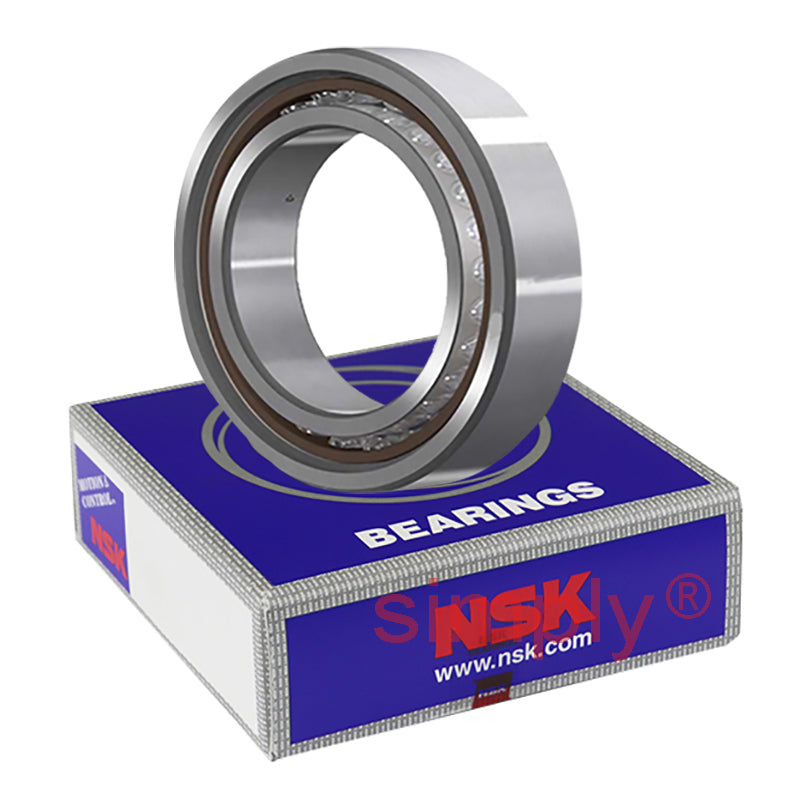

• NSK 7007CTRSUMP3 Super Precision Angular Contact Spindle Bearing 35x62x14mm
  • NSK
1 2

SKU: 7007CTRSUMP3-NSK

NSK 7007CTRSUMP3 Super Precision Angular Contact Spindle Bearing 35x62x14mm

NSK 7007CTRSUMP3 Super Precision Angular Contact Spindle Bearing 35x62x14mm
$166.50 ex VAT
$166.50 ex VAT
Sale Sold out

In stock

Price Break
3+ $109.34
5+ $103.19
10+ $101.97
25+ $100.74
49+ $99.51
74+ $98.28
99+ $92.14
199+ $90.91
249+ $89.68
499+ $88.45
999+ $86.00

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
NSK - High Quality
Inside Diameter:
35mm
Outside Diameter:
62mm
Width:
14mm
Seals / Shields:
None
Style:
Single Universal Matchable Bearing
Contact Angle:
15 Degree contact angle
Bearing Preload:
Medium preload
Technical
--- Bearing dimensions
d 35mm
D 62mm
B 14mm
r<sub>min</sub> 1mm
r1<sub>min</sub> 0.6mm
--- Loads angles and speeds
C<sub>r</sub> 20.1Kn
C<sub>or</sub> 13.7kN
Axial load Kn 9.35 kN
Contact angle 15 degrees
Factor f<sub>o</sub> 15
Effective diameter 13.5mm
Max speed in grease 23800 rpm
Max speed in oil 36100 rpm
--- Fitting dimensions
d<sub>a min</sub> 41mm
D<sub>a max</sub> 56mm
D<sub>b max</sub> 57mm
r<sub>a max</sub> 1mm
r<sub>b max</sub> 0.5mm
Weight 0.151kg
